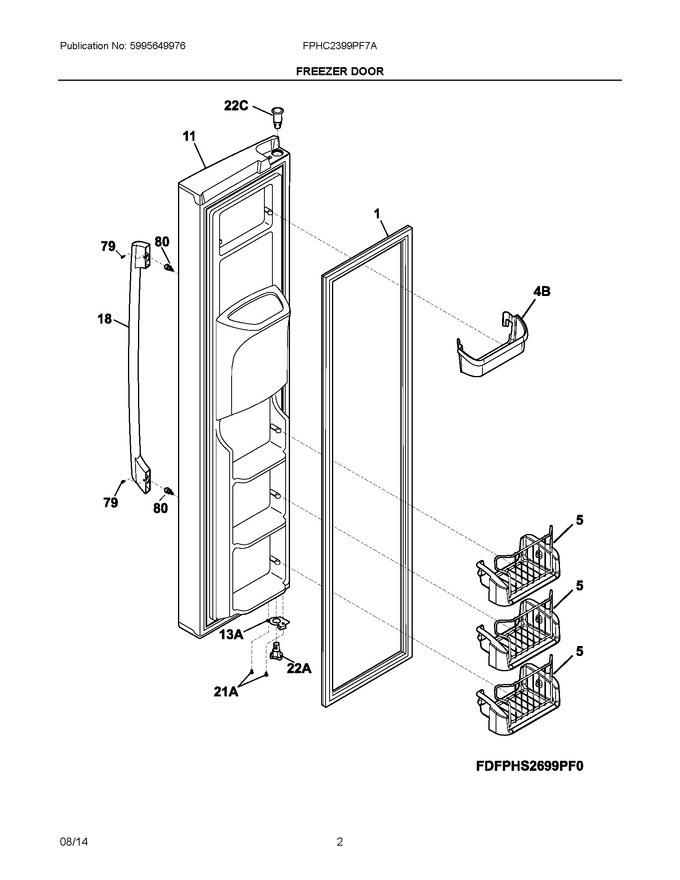

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241510208 | Gasket-frzr Door, Gray, Magnetic (Replaces: 241510206) |
|
Immediately | $ 105.50 | ||||
| 5 | 241545001 | Bin-tilt Out, Tilt-out |
|
$ 213.10 | |||||
| 11 | 241993831 | Door-frzr, Stainless, Complete Assy |
|
$ 554.72 | |||||
| 18 | 241972501 | Handle-door, Stainless |
|
$ 227.22 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 241990202 | Door Stop, Black, Frzr |
|
Immediately | $ 23.63 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.88 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 21.26 | |||||
| 4B | 241511602 | Bin-door |
|
$ 58.58 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 242288101 | Harness, Wiring, Door |
|
- | |||||
| NI | 5303918596 | Dispenser Heater Kit, 115 (Replaces: 5303918371) |
|
$ 352.64 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 4.21 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- |
