SELECT A DIAGRAM

01 - Cover Sheet

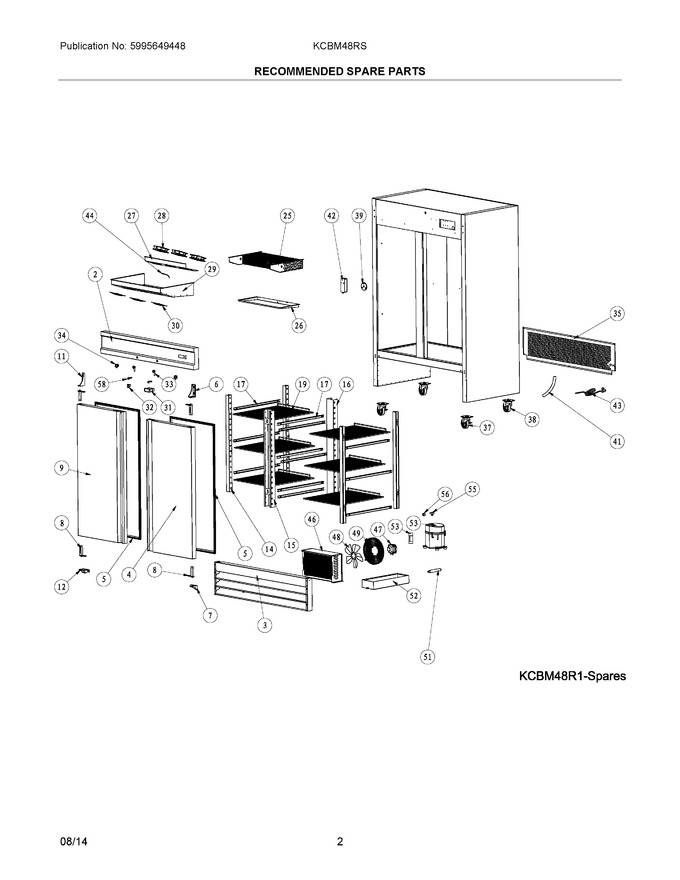

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304492346		Panel, Control, Header		Appelez-nous	-
3	5304492347		Grille, Vent, Front		Appelez-nous	-
4	5304492348		Door, Right Side		Appelez-nous	-
5	5304492349		Gasket, Door				$ 111.03
6	5304492215		Hinge, Upper, Right				$ 103.55
7	5304492216		Hinge, Bottom, Right				$ 103.55
8	5304492217		Door Closer, Hinge Spring		Appelez-nous	-
9	5304492350		Door, Left Side		Appelez-nous	-
11	5304492351		Hinge, Upper, Left		Appelez-nous	-
12	5304492352		Hinge, Bottom, Left		Appelez-nous	-
14	5304492222		Channel, Shelf Mount		Appelez-nous	-
15	5304492353		Channel, Shelf, Center Front		Appelez-nous	-
16	5304492354		Channel, Shelf, Center Rear		Appelez-nous	-
17	5304492223		Track Set, Shelf, Left & Right		Appelez-nous	-
19	5304492224		Shelf		Appelez-nous	-
25	5304495899		Evaporator		Appelez-nous	-
26	5304495900		Pan, Defrost Drain, Evaporator		Appelez-nous	-
27	5304495901		Panel, Fan Motor Mount, Housing		Appelez-nous	-
28	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
29	5304492355		Cover, Evaporator		Appelez-nous	-
30	5304492253		Cover, Evaporator Fan		Appelez-nous	-
31	5304492240		Controller, Temp, (carel)		Appelez-nous	-
31	5304496523		Controller, Temp, (juchuang)		Appelez-nous	-
32	5304492248		Switch, Power				$ 59.61
33	5304492260		Lock, Door		Appelez-nous	-
34	5304492259		Switch, Lamp, Door Activated		Appelez-nous	-
35	5304497715		Panel, Service Access, Rear		Appelez-nous	-
37	5304492261		Caster, 4 Inch Diameter, Locking		Appelez-nous	-
38	5304492262		Caster, 4 Inch Diameter		Appelez-nous	-
39	5304492263		Cover, Drain Hole, Plug		Appelez-nous	-
41	5304492265		Tube, Drain, Outer		Appelez-nous	-
42	5304492266		Lamp/light Assembly		Appelez-nous	-
43	5304492267		Power Cord, Electric, 115 V		Appelez-nous	-
44	5304492340		Probe, Temp Controller				$ 77.21
46	5304492358		Condenser		Appelez-nous	-
47	5304492359		Motor, Condenser Fan		Appelez-nous	-
48	5304492361		Fan Blade, Condenser Fan		Appelez-nous	-
49	5304492272		Cover, Condenser Fan		Appelez-nous	-
51	5304492275		Filter-drier				$ 84.74
52	5304492364		Drain Pan, Defrost		Appelez-nous	-
53	5304493028		Compressor, W/terminal Box		Appelez-nous	-
55	5304493067		Relay/starter				$ 84.06
56	5304493068		Overload				$ 61.62
58	5304492341		Key, Door Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
