SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)

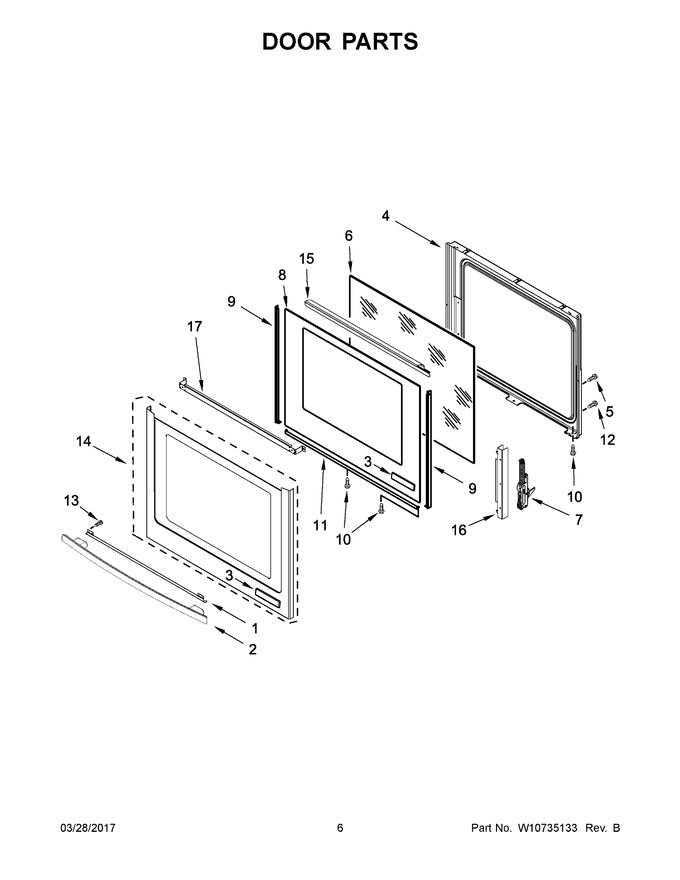

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10634234		Door, Trim Top		Appelez-nous	-
2	W10550998		Assembly, Door Handle (black)		Appelez-nous	-
3	WPW10214168		Badge (black)   (Replaces: W10190724)				$ 85.95
4	W10541882		Liner, Door				$ 177.73
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WPW10541888		Glass, Inner   (Replaces: W10541888)				$ 384.65
7	W11104737		Hinge, Slow Close (black Models)   (Replaces: W10541887)				$ 114.03
8	WPW10541892		Assembly, Outer Door (black)   (Replaces: W10541892)				$ 412.72
9	W10634236		Trim, Door Side (black)		Appelez-nous	-
10	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
11	W10541885		Support, Glass				$ 36.93
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
13	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 8.78
14	WPW10634268		Assembly, Outer Door (stainless)   (Replaces: W10634268)				$ 380.75
15	W11251351		Scoop, Door (black)   (Replaces: W10613791)			Immediately	$ 139.67
16	W10541883		Hinge, Support Rail				$ 44.90
17	W10541911		Bracket, Glass Upper Handle			Immediately	$ 39.92
15A	W11025120		Scoop, Door (stainless)   (Replaces: W10551024)				$ 123.01
2A	W11195001		Assembly, Door Handle (stainless)   (Replaces: W10551013)				$ 229.46
3B	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 85.95
7A	W10541886		Hinge, Slow Close (stainless Models)				$ 187.29

    View Diagram in Separate Window       Print Part List
