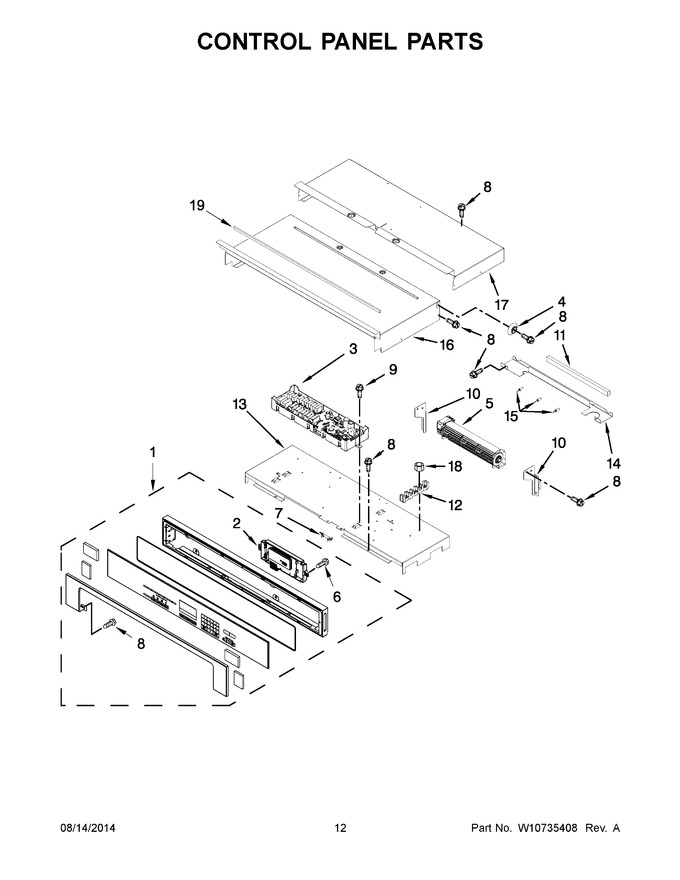

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10695076		Assembly, Control Panel (includes Overlay) (stainless)				$ 333.01
2	W10532438		Board, Display Mrc2				$ 431.08
3	WPW10695608		Board, Mrc2 Main   (Replaces: W10695608)				$ 379.25
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	WPW10661038		Blower (lower)   (Replaces: W10661038)				$ 259.23
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545291		Fuse, Thermal   (Replaces: W10545291)			Immediately	$ 35.50
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10347650		Tray, Electronic				$ 126.08
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	W10351295		Bumper				$ 22.12
16	W10318192		Chassis, Cover Top Front 30				$ 138.81
17	W10904156		Chassis, Cover Top Back 30   (Replaces: W10318194)		Appelez-nous	-
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 7.55
19	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 89.66
10A	W10283078		Bracket, Blower (right)		Appelez-nous	-
5A	W10641253		Blower (upper)				$ 127.63
