SELECT A DIAGRAM
01 - Cover Sheet
02 - Motor And Housing Unit Parts

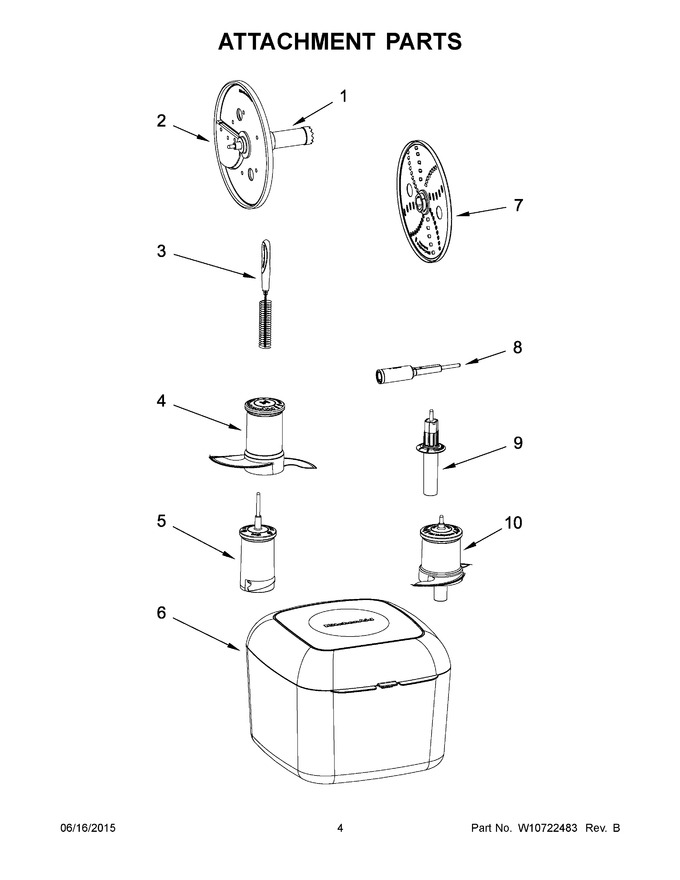

03 - Attachment Parts
04 - Bowl And Lid Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10723413 | Adapter, Slicing Shaft |
|
$ 36.58 | |||||
| 2 | W10723406 | Disc, Slicing |
|
$ 79.50 | |||||
| 3 | W10723459 | Brush, Adjust Shred Disc |
|
- | |||||
| 4 | W10451463 | Blade, Multi-purpose |
|
$ 27.13 | |||||
| 5 | W10723411 | Blade, Dough |
|
$ 58.82 | |||||
| 6 | W10723412 | Box, Accessory |
|
- | |||||
| 7 | WPW10451465 | Disc, Shredding (Replaces: W10451465) |
|
$ 53.16 | |||||
| 8 | W10723416 | Adapter, Common |
|
$ 47.22 | |||||
| 9 | W10723414 | Adapter, Shredding (baffle) |
|
$ 59.94 | |||||
| 10 | W10723409 | Blade, Mini |
|
- |
