SELECT A DIAGRAM

01 - Cover Sheet

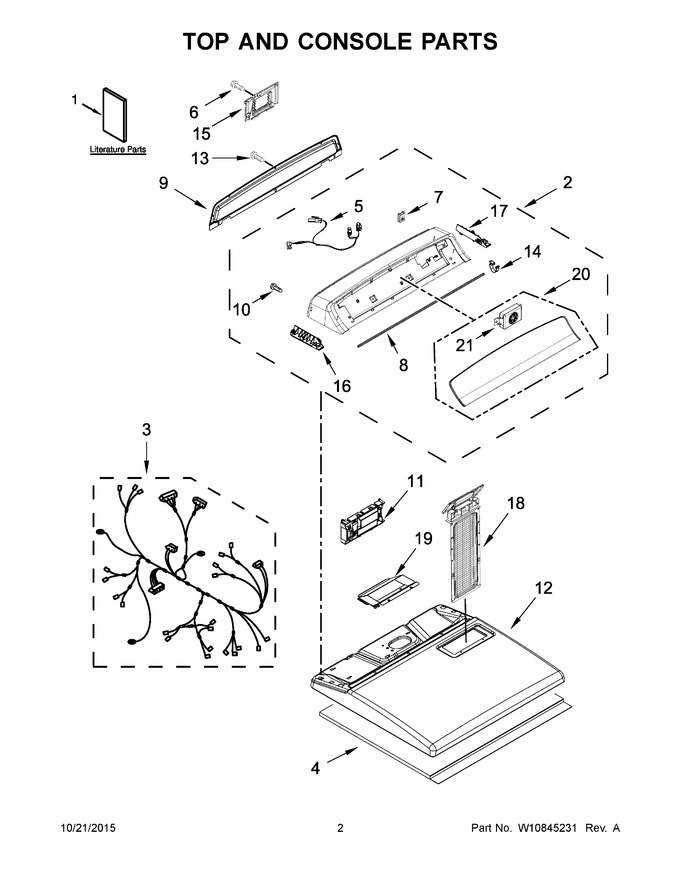

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10680136		Installation Instructions		Appelez-nous	-
2	W10914511		Console Assembly (complete) (white)   (Replaces: W10662516)		Appelez-nous	-
3	W10706065		Harness, Main		Appelez-nous	-
3	W10607498		Wiring Harness		Appelez-nous	-
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10634454		Harness, User Interface		Appelez-nous	-
6	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10775189		Panel, Rear				$ 390.13
9	W10775189		Panel, Rear Console   (Replaces: W10618860)				$ 390.13
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	WPW10691552		Control, Electronic   (Replaces: W10691552)				$ 290.58
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 196.23
13	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
13	W11311945		Screw   (Replaces: 12990204)				$ 14.72
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
18	W11778254		Assembly, Lint Screen   (Replaces: W10508973)			Immediately	$ 54.63
19	W10662472		Collar, Lint Chute				$ 77.87
20	W10596696		Fascia		Appelez-nous	-
21	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
1A	W10680128		Guide, Use And Care		Appelez-nous	-
1B	W10680138		Tech Sheet		Appelez-nous	-
1C	W10634452		Wiring Diagram		Appelez-nous	-
1D	W10743379		Quickstart Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
