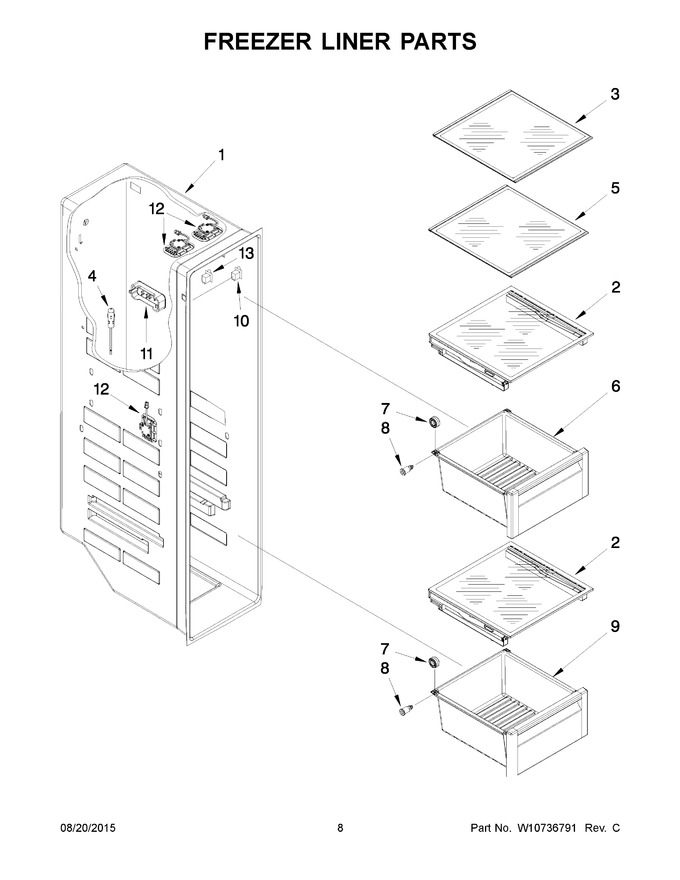

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10290890 | Cover Assembly |
|
$ 269.33 | |||||
| 3 | WPW10393383 | Shelf, Glass Upper (Replaces: W10393383) |
|
$ 272.67 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | WPW10393382 | Shelf, Glass Lower (Replaces: W10393382) |
|
$ 259.31 | |||||
| 6 | WPW10476307 | Freezer Pan, Middle (Replaces: W10476307) |
|
$ 177.38 | |||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 15.74 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 | |||||
| 9 | WPW10476306 | Freezer Pan, Lower (Replaces: W10476306) |
|
$ 171.03 | |||||
| 10 | W11457217 | Switch, Rocker Arm Combination (freezer) (Replaces: 1115373) |
|
$ 40.09 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 12 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 271.97 | ||||
| 13 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 36.66 |
