SELECT A DIAGRAM

01 - Cover Sheet

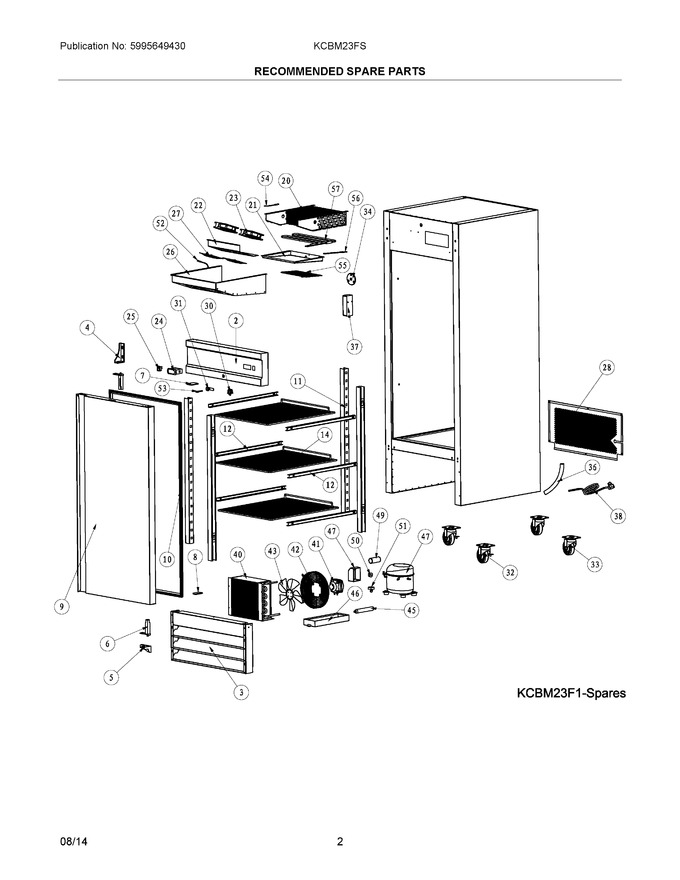

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304492213		Panel, Control, Header		Appelez-nous	-
3	5304492214		Grille, Vent, Front, Louvers		Appelez-nous	-
4	5304492215		Hinge, Upper, Right				$ 103.55
5	5304492216		Hinge, Bottom, Right				$ 103.55
6	5304492217		Door Closer, Hinge Spring		Appelez-nous	-
7	5304492218		Cover, Hinge Hole, Header Panel		Appelez-nous	-
8	5304492219		Cover, Hinge Hole, Grille		Appelez-nous	-
9	5304492220		Door, Reversible		Appelez-nous	-
10	5304492221		Gasket, Door Seal		Appelez-nous	-
11	5304492222		Channel, Shelf Mount		Appelez-nous	-
12	5304492223		Track Set, Shelf, Left & Right		Appelez-nous	-
14	5304492224		Shelf		Appelez-nous	-
20	5304492228		Evaporator		Appelez-nous	-
21	5304496423		Pan, Defrost Drain, Evaporator		Appelez-nous	-
22	5304492230		Panel, Fan Motor Mount, Housing		Appelez-nous	-
23	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
24	5304492245		Controller, Temp, (carel)				$ 237.66
25	5304492248		Switch, Power				$ 59.61
26	5304492252		Cover, Evaporator		Appelez-nous	-
27	5304492253		Cover, Evaporator Fan		Appelez-nous	-
28	5304492257		Panel, Service Access, Rear		Appelez-nous	-
30	5304492259		Switch, Lamp, Door Activated		Appelez-nous	-
31	5304492260		Lock, Door		Appelez-nous	-
32	5304492261		Caster, 4 Inch Diameter, Locking		Appelez-nous	-
33	5304492262		Caster, 4 Inch Diameter		Appelez-nous	-
34	5304492263		Cover, Drain Hole, Plug		Appelez-nous	-
36	5304492265		Tube, Drain, Outer		Appelez-nous	-
37	5304492266		Lamp/light Assembly		Appelez-nous	-
38	5304492267		Power Cord, Electric, 115 V		Appelez-nous	-
40	5304492270		Condenser		Appelez-nous	-
41	5304492271		Motor, Condenser Fan		Appelez-nous	-
42	5304492272		Cover, Condenser Fan		Appelez-nous	-
43	5304492273		Fan Blade, Condenser Fan		Appelez-nous	-
45	5304492275		Filter-drier				$ 84.74
46	5304492276		Drain Pan, Defrost		Appelez-nous	-
47	5304493027		Compressor, W/terminal Box		Appelez-nous	-
49	5304493066		Capacitor, Start		Appelez-nous	-
50	5304493065		Overload		Appelez-nous	-
51	5304493064		Relay/starter				$ 84.90
52	5304492340		Probe, Temp Controller				$ 77.21
53	5304492341		Key, Door Lock		Appelez-nous	-
54	5304492342		Sensor, Temperature, Evaporator		Appelez-nous	-
55	5304492343		Heater, Drain Pan		Appelez-nous	-
56	5304492344		Heater, Drain Hose		Appelez-nous	-
57	5304492345		Heater, Evaporator, Defrost		Appelez-nous	-
24A	5304496524		Controller, Temp, (juchuang)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
