SELECT A DIAGRAM

01 - Cover Sheet

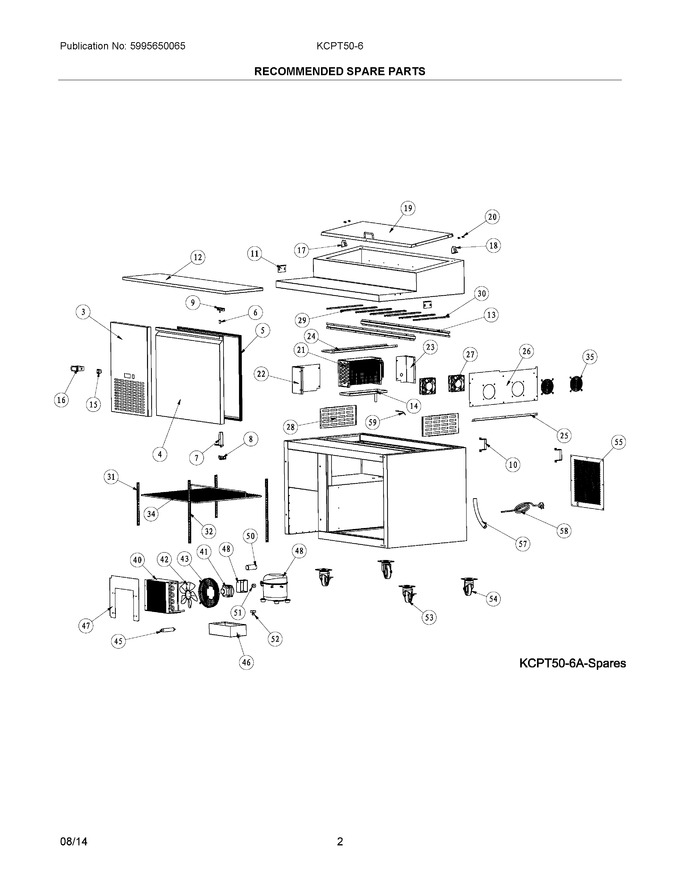

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304493462		Cover, Condenser, Control Panel		Appelez-nous	-
4	5304497880		Door		Appelez-nous	-
5	5304497881		Gasket, Door Seal		Appelez-nous	-
6	5304493360		Hinge Pin, Door, Upper		Appelez-nous	-
7	5304492217		Door Closer, Hinge Spring		Appelez-nous	-
8	5304493361		Hinge, Door, Bottom Right		Appelez-nous	-
9	5304493362		Hinge, Door, Upper Right		Appelez-nous	-
10	5304493382		Bracket, Stand Off		Appelez-nous	-
11	5304493363		Bracket, Cutting Board		Appelez-nous	-
12	5304497353		Board, Cutting		Appelez-nous	-
13	5304497354		Rail, Pan		Appelez-nous	-
14	5304497882		Pan, Defrost Drain, Evaporator		Appelez-nous	-
15	5304492248		Switch, Power				$ 59.61
16	5304496527		Controller, Temp, (juchuang)		Appelez-nous	-
17	5304493469		Hinge, Top Lid, Left		Appelez-nous	-
18	5304493470		Hinge, Top Lid, Right		Appelez-nous	-
19	5304497883		Lid		Appelez-nous	-
20	5304493473		Hinge Pin, Lid		Appelez-nous	-
21	5304497884		Evaporator		Appelez-nous	-
22	5304497885		Support, Evap Cover, Left Side		Appelez-nous	-
23	5304493476		Support, Evap Cover, Right Side		Appelez-nous	-
24	5304493477		Support, Evap Cover, Upper		Appelez-nous	-
25	5304493478		Support, Evap Cover, Bottom		Appelez-nous	-
26	5304493479		Panel, Fan Mount		Appelez-nous	-
27	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
28	5304493480		Grille, Inner		Appelez-nous	-
29	5304493481		Bracket, End Pan, 25 Mm Wide		Appelez-nous	-
30	5304493482		Bracket, End Pan, 15 Mm Wide		Appelez-nous	-
31	5304493397		Pilaster, Shelf Mount, 3 Screw		Appelez-nous	-
32	5304493483		Pilaster, Shelf Mount, 4 Screw		Appelez-nous	-
34	5304497970		Shelf		Appelez-nous	-
35	5304493485		Grille, Fan Cover, Evaporator		Appelez-nous	-
40	5304497886		Condenser		Appelez-nous	-
41	5304492271		Motor, Condenser Fan		Appelez-nous	-
42	5304493298		Fan Blade, Condenser Fan		Appelez-nous	-
43	5304493299		Cover, Condenser Fan		Appelez-nous	-
45	5304492275		Filter-drier				$ 84.74
46	5304493296		Pan, Drain, Condensate		Appelez-nous	-
47	5304493501		Frame, Air Baffle, Condenser		Appelez-nous	-
48	5304493026		Compressor, W/terminal Box		Appelez-nous	-
50	5304493032		Capacitor, Start		Appelez-nous	-
51	5304493031		Overload		Appelez-nous	-
52	5304493030		Relay/starter		Appelez-nous	-
53	5304492261		Caster, 4 Inch Diameter, Locking		Appelez-nous	-
54	5304492262		Caster, 4 Inch Diameter		Appelez-nous	-
55	5304493502		Panel, Svce Access, Rear Grille		Appelez-nous	-
57	5304493401		Tube, Drain, 16 Mm Dia		Appelez-nous	-
58	5304493100		Power Cord, Electric, 115 V		Appelez-nous	-
59	5304492340		Probe, Temp Controller				$ 77.21
16A	5304492240		Controller, Temp, (carel)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
