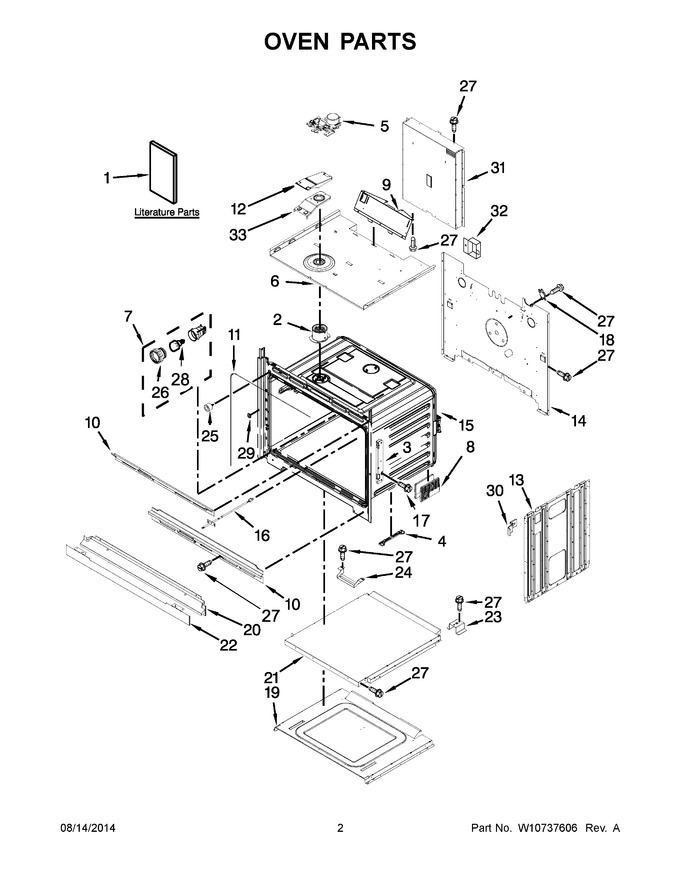

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10351242 | Installation Instructions |
|
- | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 25.54 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10616802) |
|
Immediately | $ 57.49 | ||||
| 4 | WPW10318220 | Spacer, Base (Replaces: W10318220) |
|
$ 26.76 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 306.46 | ||||
| 6 | W10641573 | Top, Chassis |
|
- | |||||
| 7 | WPW10734063 | Assembly, Light (Replaces: W10260262) |
|
$ 89.05 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10318219) |
|
$ 33.51 | |||||
| 9 | W10904163 | Deflector, Blower (Replaces: W10641572) |
|
Immediately | $ 169.79 | ||||
| 10 | W10283036 | Vent, Top 30 |
|
$ 63.87 | |||||
| 11 | W11623080 | Gasket (Replaces: W10282960) |
|
Immediately | $ 72.35 | ||||
| 12 | W10616810 | Cover, Vent Exhaust |
|
$ 69.95 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10696134 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 133.83 | ||||
| 17 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11238787 | Base, Chassis (Replaces: W10282900) |
|
$ 349.65 | |||||
| 20 | WPW10351279 | Assembly, Bottom Vent (stainless) (Replaces: W10351279) |
|
Immediately | $ 280.30 | ||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 220.05 | |||||
| 22 | WPW10327377 | Trim, Bottom Vent (stainless) (Replaces: W10327377) |
|
$ 180.08 | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Spacer, Chassis Bottom Duct |
|
$ 58.73 | |||||
| 25 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 26 | WPW10412722 | Lens, Light (Replaces: W10412722) |
|
Immediately | $ 19.65 | ||||
| 27 | 7101P426- | Screw |
|
- | |||||
| 28 | WPW10412711 | Bulb, Light (Replaces: W10412711) |
|
Immediately | $ 22.61 | ||||
| 29 | W10759525 | Grommet, Front Frame (Replaces: W10283016) |
|
$ 8.21 | |||||
| 30 | W10347649 | Spacers, Front |
|
$ 15.02 | |||||
| 31 | W10318196 | Duct, Chassis Back |
|
$ 218.89 | |||||
| 32 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 33 | W10616809 | Base, Vent Exhaust |
|
$ 32.24 | |||||
| 1A | W10351318 | Instructions,undercounter Install |
|
- | |||||
| 1B | W10708442 | Use & Care Guide |
|
- | |||||
| 1C | W10507057 | Tech Sheet |
|
- | |||||
| NI | N/P | Following Parts Not Llustrated |
|
- | |||||
| NI | W11688731 | Insulation, Wrap (Replaces: W10520715) |
|
$ 124.87 | |||||
| NI | W11684789 | Insulation, Cavity (Replaces: W10282944) |
|
$ 124.04 |
