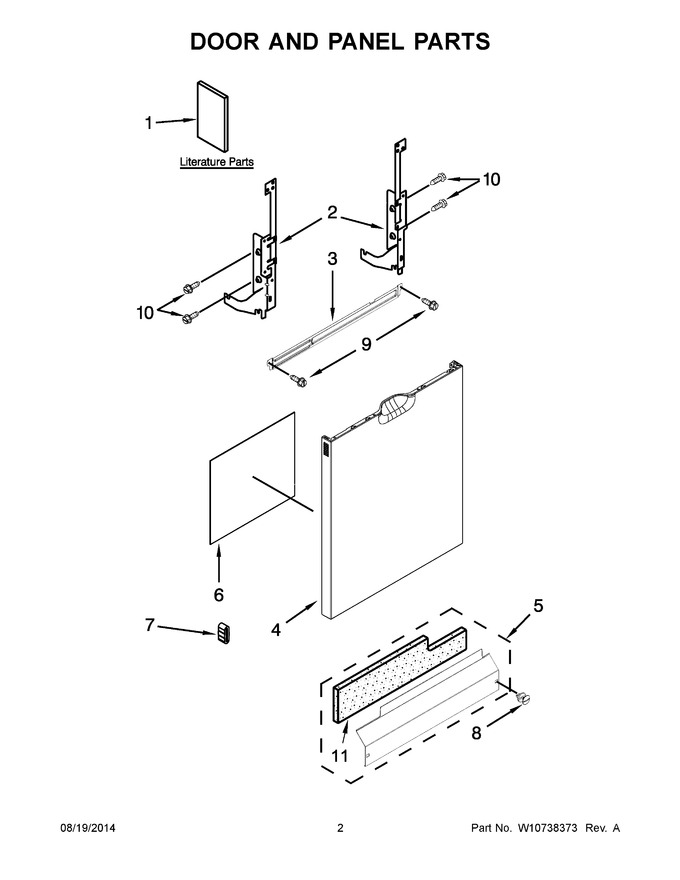

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10380392		Installation Instructions		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10195120)			Immediately	$ 32.88
4	W11744284		Panel Front (stainless)   (Replaces: W10671878)				$ 505.61
5	W10827631		Access Panel (black)   (Replaces: W10369023)			Immediately	$ 195.64
6	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
11	W10831329		Insulation, Toe Panel   (Replaces: W10300769)			Immediately	$ 43.30
1A	W10671813		Energy Guide		Appelez-nous	-
1B	W10671840		Use & Care Manual		Appelez-nous	-
1C	W10590887		Tech Sheet, English		Appelez-nous	-
1D	W10590888		Tech Sheet, French		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93
