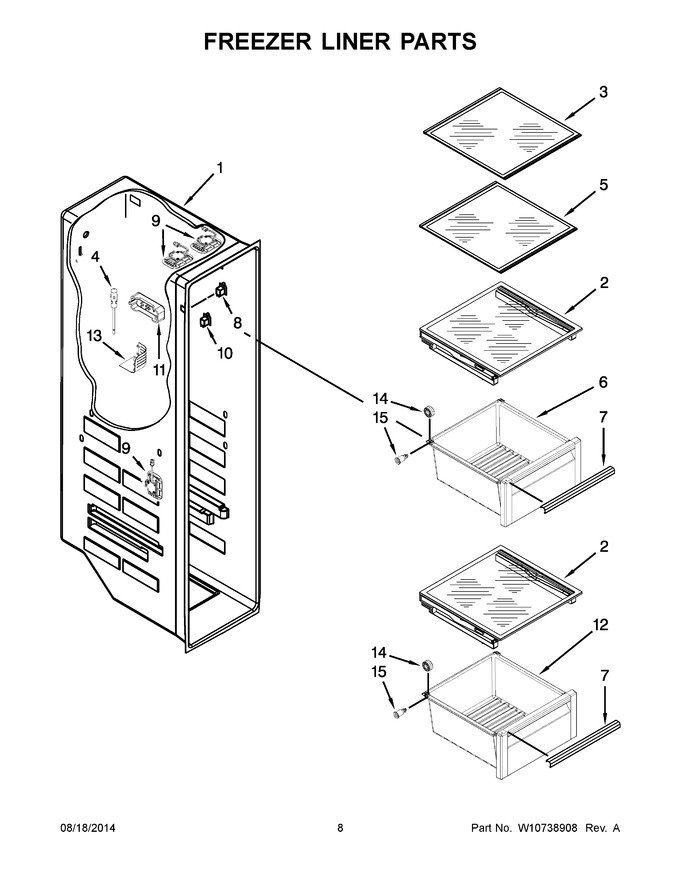

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10362175 | Cover Assembly |
|
$ 266.72 | |||||
| 3 | W10321181 | Shelf, Glass Upper (Replaces: W10315533) |
|
$ 267.27 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | WPW10321182 | Shelf, Glass Lower (Replaces: W10315534) |
|
$ 273.66 | |||||
| 6 | W10846447 | Bin Assembly (Replaces: W10542031) |
|
Immediately | $ 273.37 | ||||
| 7 | W10542017 | Trim, Handle |
|
$ 103.02 | |||||
| 8 | W11396033 | Switch, Rocker Arm (Replaces: W10656771) |
|
Immediately | $ 37.30 | ||||
| 9 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 271.97 | ||||
| 10 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 36.66 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 12 | W10542032 | Bin Assembly |
|
$ 309.79 | |||||
| 13 | W10260382 | Cover, Light |
|
$ 80.58 | |||||
| 14 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 15.74 | ||||
| 15 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 |
