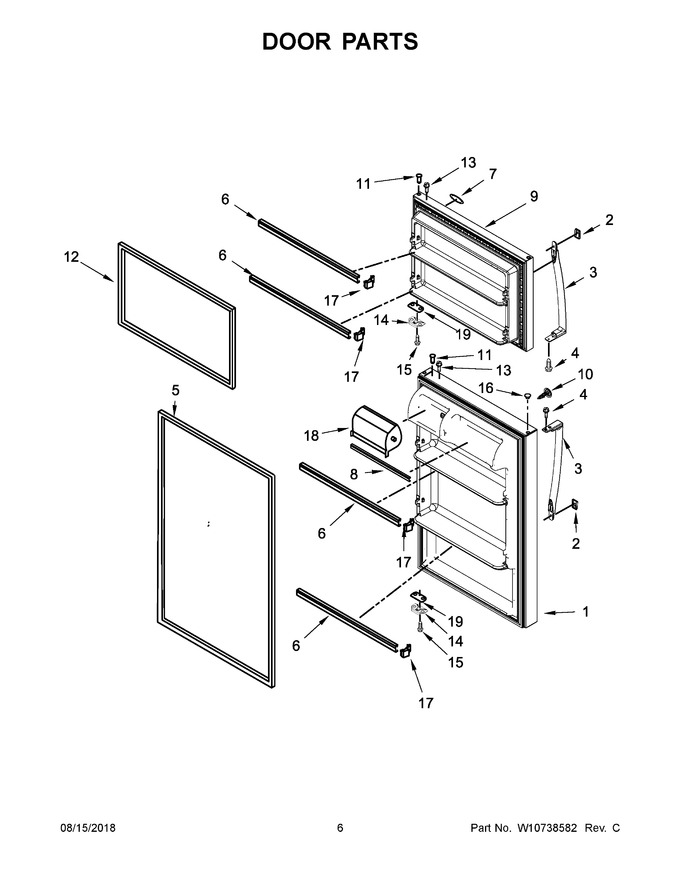

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10573334 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10573334) |
|
$ 638.81 | |||||
| 2 | WPW10672338 | Handle, Trim (white) (Replaces: W10672338) |
|
Immediately | $ 29.91 | ||||
| 3 | WPW10672333 | Handle, Door (white) (Replaces: W10672333) |
|
Immediately | $ 189.08 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | WP2319265T | Door Gasket, Magnetic (white) (Replaces: 2264728) |
|
Immediately | $ 184.89 | ||||
| 6 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 7 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 127.34 | ||||
| 9 | LW10573340 | Freezer Door (includes Illustration 12) (white) (Replaces: W10573340) |
|
- | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 12 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 151.03 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W10492012 | Bracket, Door Stop |
|
$ 16.85 | |||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 19 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 19.54 | |||||
| 12A | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 16A | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 19A | 2258681B | Shim, Door Stop (black) |
|
$ 45.33 | |||||
| 1A | LW10570511 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10570511) |
|
$ 624.70 | |||||
| 2A | W10838316 | Handle, Trim (black) (Replaces: W10672339) |
|
$ 31.08 | |||||
| 3A | WPW10672334 | Handle, Door (black) (Replaces: W10672334) |
|
$ 227.34 | |||||
| 5A | 2319265B | Door Gasket, Magnetic (black) (Replaces: 2264724) |
|
$ 329.50 | |||||
| 9A | LW10570946 | Freezer Door (includes Illustration 12) (black) (Replaces: W10570946) |
|
$ 595.21 |
