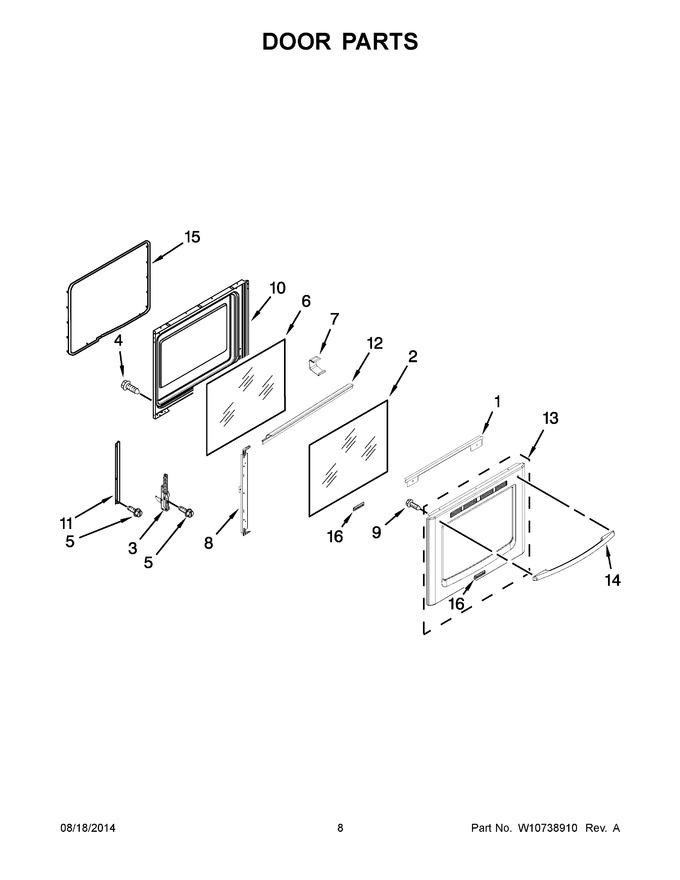

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339814 | Trim, Door (black) |
|
$ 139.33 | |||||
| 2 | WPW10495964 | Glass, Outer Door (stainless) (Replaces: W10495964) |
|
$ 372.84 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10300487 | Glass, Inner (double Coated) (Replaces: W10300487) |
|
$ 252.42 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 9 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 13 | WPW10490829 | Glass Assembly, Outer Door (stainless) (Replaces: W10490829) |
|
$ 379.64 | |||||
| 14 | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 334.61 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 87.76 | ||||
| 16 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 58.31 |
