View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves

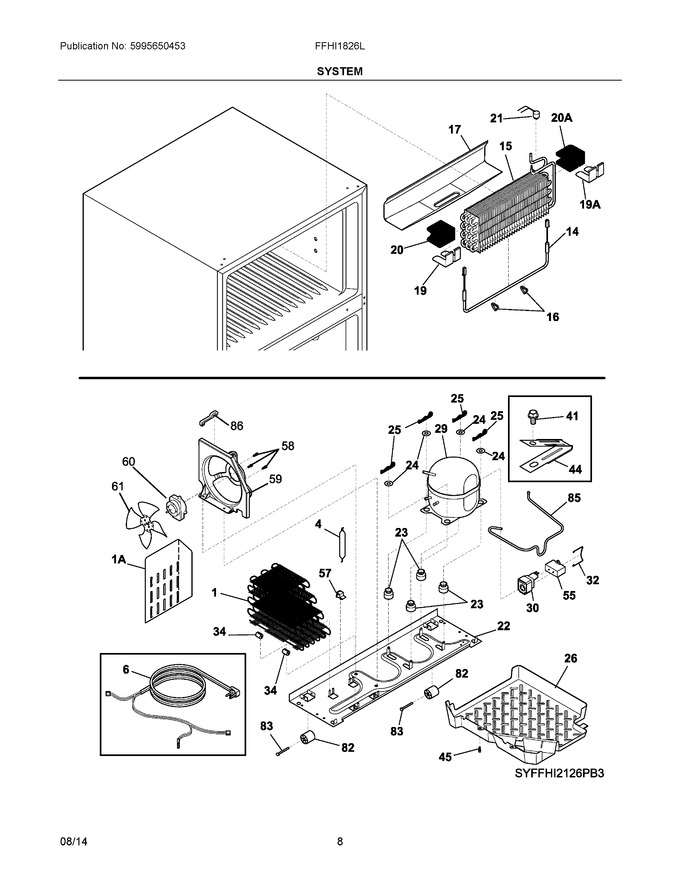

05 - System
06 - Ice Maker
07 - Wiring Schematic
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241785404 | Condenser, Dynamic |
|
$ 188.21 | |||||
| 4 | 5303305677 | Dryer-filter, W/process Tube (Replaces: 242190201) |
|
Immediately | $ 35.19 | ||||
| 6 | 5304521786 | Harness-wiring, Machine Compt (Replaces: 242019701) |
|
$ 140.72 | |||||
| 14 | 242044008 | Heater-defrost |
|
Immediately | $ 36.67 | ||||
| 15 | 5303918492 | Evaporator Kit |
|
$ 198.71 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 66.47 | ||||
| 17 | 241801301 | Trough-drain |
|
$ 71.62 | |||||
| 19 | 242320401 | Shield, Heat, Evap Block |
|
$ 74.99 | |||||
| 20 | 5304527429 | Block, Evaporator, Rh (Replaces: 242238401) |
|
$ 12.47 | |||||
| 21 | 5303918634 | Thermostat Kit, Defrost, W/connector |
|
Immediately | $ 44.79 | ||||
| 22 | 241665504 | Base-compressor |
|
$ 88.99 | |||||
| 23 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 47.25 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 14.32 | |||||
| 25 | 242037701 | Clip-compressor Mtg |
|
$ 3.15 | |||||
| 26 | 241920605 | Pan-defrost |
|
$ 59.73 | |||||
| 29 | 240550946 | Compressor, W/o Electricals (Replaces: 240550937) |
|
Immediately | $ 440.73 | ||||
| 30 | 241941005 | Starter |
|
$ 127.60 | |||||
| 32 | 297030500 | Clamp, Elec Cont Mtg, Compressor |
|
Immediately | $ 13.39 | ||||
| 34 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 22.05 | |||||
| 41 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| 44 | 5304456288 | Clamp-wiring Harness, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.37 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 31.97 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240555002 | Screw, Hex Washer Head, 8-32 X 0.375 (Replaces: 218897004) |
|
Immediately | $ 14.96 | ||||
| 60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 153.95 | ||||
| 61 | 240524102 | Fan Blade, Condenser Fan |
|
Immediately | $ 43.81 | ||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 39.27 | ||||
| 84 | 240500801 | Tube-drain, Rubber, Lower |
|
$ 72.45 | |||||
| 85 | 241871503 | Tube-connector, Suction |
|
$ 54.77 | |||||
| 1A | 242213901 | Deflector, Air |
|
$ 21.91 | |||||
| 20A | 5304527430 | Block, Evaporator, Lh (Replaces: 242238301) |
|
$ 12.75 | |||||
| 21A | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 13.39 | |||||
| 22A | 241665606 | Base-compressor |
|
$ 215.71 | |||||
| NI | 5303918263 | Heat Exchanger Kit, Suction Line |
|
$ 512.40 | |||||
| NI | 240346701 | Tape-foam Seal, Shroud |
|
$ 33.08 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 21.26 | |||||
| NI | 5303918222 | Hot Tube Repair Kit, Service |
|
$ 418.12 | |||||
| NIA | 240359403 | Screw-fan Shroud, (2) |
|
$ 4.21 | |||||
| NIA | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 88.99 | ||||
| NIB | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 |
