01 - Cover Sheet

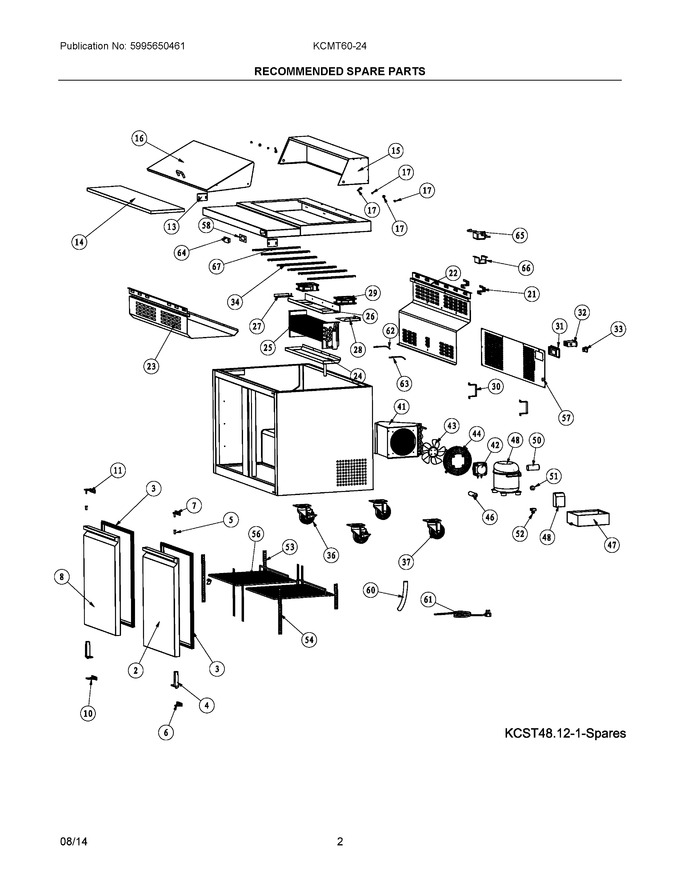

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304497998 | Door, Right Side |
|
- | |||||
| 3 | 5304497999 | Gasket, Door Seal |
|
- | |||||
| 4 | 5304492217 | Door Closer, Hinge Spring |
|
- | |||||
| 5 | 5304493360 | Hinge Pin, Door, Upper |
|
- | |||||
| 6 | 5304493361 | Hinge, Door, Bottom Right |
|
- | |||||
| 7 | 5304493362 | Hinge, Door, Upper Right |
|
- | |||||
| 8 | 5304498000 | Door, Left Side |
|
- | |||||
| 10 | 5304493409 | Hinge, Door, Bottom Left |
|
- | |||||
| 11 | 5304493410 | Hinge, Door, Top Left |
|
- | |||||
| 13 | 5304493363 | Bracket, Cutting Board |
|
- | |||||
| 14 | 5304497356 | Board, Cutting |
|
- | |||||
| 15 | 5304498009 | Hood, Lid |
|
- | |||||
| 16 | 5304498010 | Lid |
|
- | |||||
| 17 | 5304493386 | Hinge Kit, Hood |
|
- | |||||
| 21 | 5304493368 | Support, Air Vent |
|
- | |||||
| 22 | 5304498011 | Cover, Evaporator |
|
- | |||||
| 23 | 5304498012 | Cover, Air Return |
|
- | |||||
| 24 | 5304498005 | Pan, Defrost Drain, Evaporator |
|
- | |||||
| 25 | 5304493584 | Evaporator |
|
- | |||||
| 26 | 5304493586 | Panel, Fan Motor Mount |
|
- | |||||
| 27 | 5304498013 | Support, Evaporator, Left Side |
|
- | |||||
| 28 | 5304498014 | Support, Evaporator, Right Side |
|
- | |||||
| 29 | 5304492231 | Fan Assy, Evaporator, With Motor |
|
- | |||||
| 30 | 5304493382 | Bracket, Stand Off |
|
- | |||||
| 31 | 5304493383 | Control Box |
|
- | |||||
| 32 | 5304492240 | Controller, Temp, (carel) |
|
- | |||||
| 33 | 5304492248 | Switch, Power |
|
$ 59.61 | |||||
| 34 | 5304493390 | Bracket, End Pan, 25 Mm |
|
- | |||||
| 36 | 5304492261 | Caster, 4 Inch Diameter, Locking |
|
- | |||||
| 37 | 5304492262 | Caster, 4 Inch Diameter |
|
- | |||||
| 41 | 5304493455 | Condenser |
|
- | |||||
| 42 | 5304492359 | Motor, Condenser Fan |
|
- | |||||
| 43 | 5304493456 | Fan Blade, Condenser Fan |
|
$ 59.01 | |||||
| 44 | 5304493105 | Grille, Fan Cover, Condenser |
|
- | |||||
| 46 | 5304493106 | Filter-drier |
|
- | |||||
| 47 | 5304493457 | Pan, Drain, Condensate |
|
- | |||||
| 48 | 5304493171 | Compressor |
|
- | |||||
| 50 | 5304493032 | Capacitor, Start |
|
- | |||||
| 51 | 5304493174 | Overload |
|
- | |||||
| 52 | 5304493173 | Relay/starter |
|
- | |||||
| 53 | 5304493396 | Pilaster, Shelf Mount, 2 Screw |
|
- | |||||
| 54 | 5304493397 | Pilaster, Shelf Mount, 3 Screw |
|
- | |||||
| 56 | 5304497357 | Shelf |
|
- | |||||
| 57 | 5304498008 | Panel, Svce Access, Rear |
|
- | |||||
| 58 | 5304493400 | Plate, Temp Display |
|
- | |||||
| 60 | 5304493401 | Tube, Drain, 16 Mm Dia |
|
- | |||||
| 61 | 5304493100 | Power Cord, Electric, 115 V |
|
- | |||||
| 62 | 5304492340 | Probe, Temp Controller |
|
$ 77.21 | |||||
| 63 | 5304493402 | Probe, Temp Display, Fahrenheit |
|
- | |||||
| 64 | 5304493083 | Display, Temperature, Fahrenheit |
|
- | |||||
| 65 | 5304493077 | Transformer, Temp Display |
|
$ 84.74 | |||||
| 66 | 5304493403 | Bracket, Transformer |
|
- | |||||
| 67 | 5304498024 | Bracket, End Pan, 15/108 Mm Wide |
|
- | |||||
| NIA | 5304496527 | Controller, Temp, (juchuang) |
|
- |
