01 - Cover Sheet
02 - Top And Cabinet Parts

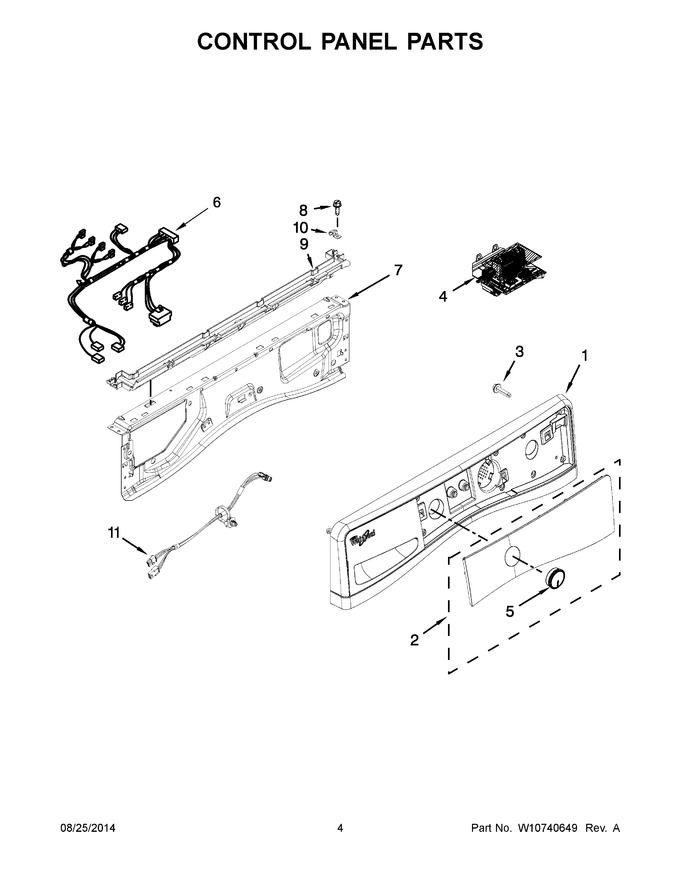

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10858319 | Assembly, Console (silver) (Replaces: W10503134) |
|
$ 348.14 | |||||
| 2 | W10433092 | Assembly, Iml (silver) |
|
$ 637.97 | |||||
| 3 | W10589828 | Screw |
|
$ 15.29 | |||||
| 4 | W10693600 | Control Unit, Appliance |
|
$ 245.70 | |||||
| 5 | W10631128 | Assembly, Timer Knob (silver) |
|
$ 43.42 | |||||
| 6 | W10685628 | Harness, Main (upper) (Replaces: W10572164) |
|
$ 163.70 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 28.54 |
