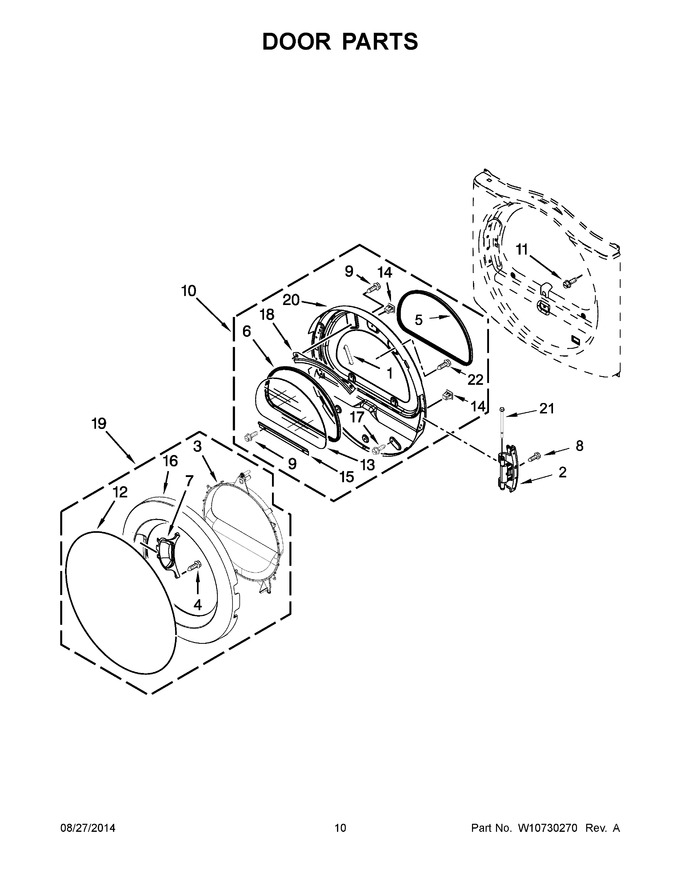

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label-hinge Hole (white)   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Assembly, Door Hinge   (Replaces: W10304672)			Immediately	$ 232.48
3	W10283424		Door, Intermediate Stationary		Appelez-nous	-
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
5	WPW10163915		Seal, Door   (Replaces: W10163915)			Immediately	$ 87.42
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
7	W10215754		Handle, Door				$ 85.95
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
10	W10564641		Assembly, Inner Door				$ 226.63
11	WP355515		Screw   (Replaces: 355515)				$ 8.48
12	N/P		Screen, Door (not Serviceable)		Appelez-nous	-
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
16	W10215742		Door, Outer Ring				$ 353.97
17	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
18	8519356		Retainer, Window (upper)		Appelez-nous	-
19	W10215753		Door, Outer (white)				$ 285.86
20	W11690171		Door, Inner   (Replaces: W10363674)				$ 204.49
21	8565087		Screw		Appelez-nous	-
22	W11116979		Screw   (Replaces: 8534044)				$ 13.76
