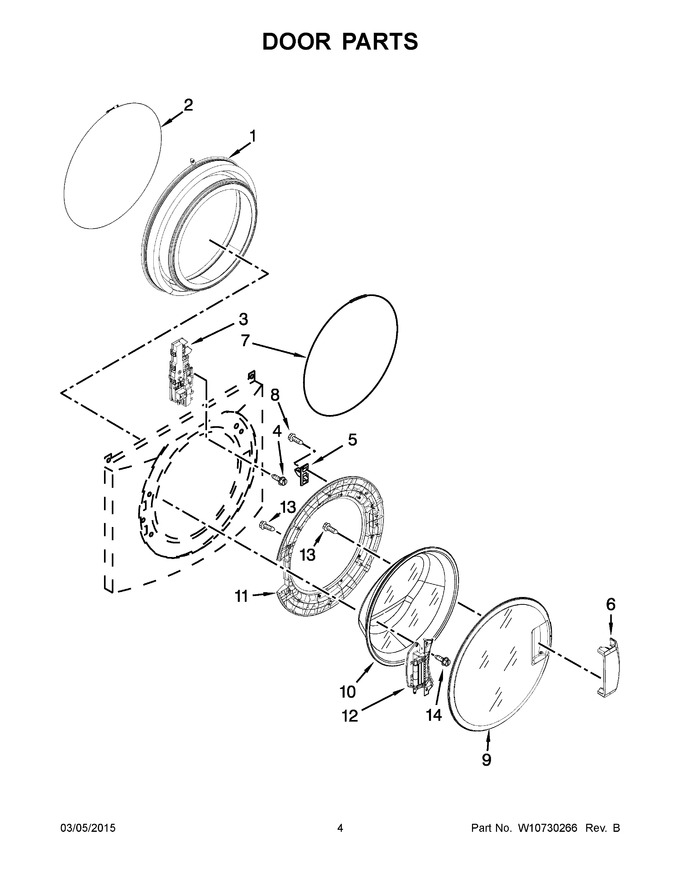

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222077 | Bellow (Replaces: W10311051) |
|
Immediately | $ 256.53 | ||||
| 2 | WP8540108 | Clamp, Bellow To Tub (Replaces: 8540108) |
|
Immediately | $ 25.64 | ||||
| 3 | WPW10375379 | Lock, Door (Replaces: W10375379) |
|
Immediately | $ 236.55 | ||||
| 4 | WP8540725 | Screw (Replaces: 8540725) |
|
Immediately | $ 8.52 | ||||
| 5 | WP8540221 | Hook, Door (Replaces: 8540221) |
|
Immediately | $ 12.39 | ||||
| 6 | W10300865 | Handle, Door |
|
$ 84.58 | |||||
| 7 | W11032829 | Clamp, Bellow To Front Panel (Replaces: W10217563) |
|
Immediately | $ 22.30 | ||||
| 8 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 9 | WPW10300867 | Frame Assembly, Door Front (Replaces: W10300867) |
|
$ 356.11 | |||||
| 10 | WPW10388315 | Glass, Door (Replaces: W10388315) |
|
$ 345.28 | |||||
| 11 | WPW10207904 | Frame, Door Back Support (Replaces: W10207904) |
|
$ 220.70 | |||||
| 12 | WPW10210893 | Hinge, Door (Replaces: W10210893) |
|
$ 229.89 | |||||
| 13 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 14 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 11.49 |
