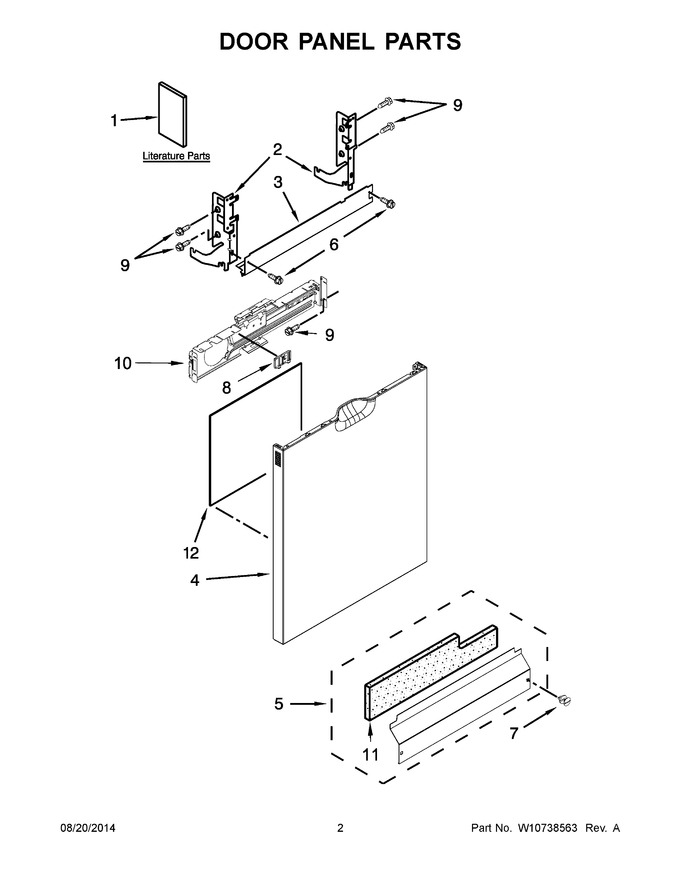

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10401504		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 29.59
4	W10671859		Panel Front (stainless)				$ 373.91
5	W10827608		Access Panel (black)   (Replaces: W10369038)				$ 162.68
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
8	W10463662		Spacer, Control Bracket Panel				$ 44.47
9	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
10	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 79.49
11	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 38.97
12	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 86.61
1A	W10671814		Energy Guide		Appelez-nous	-
1B	W10671842		Use & Care Guide		Appelez-nous	-
1C	W10580766		Tech Sheet, English		Appelez-nous	-
1D	W10580767		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02
