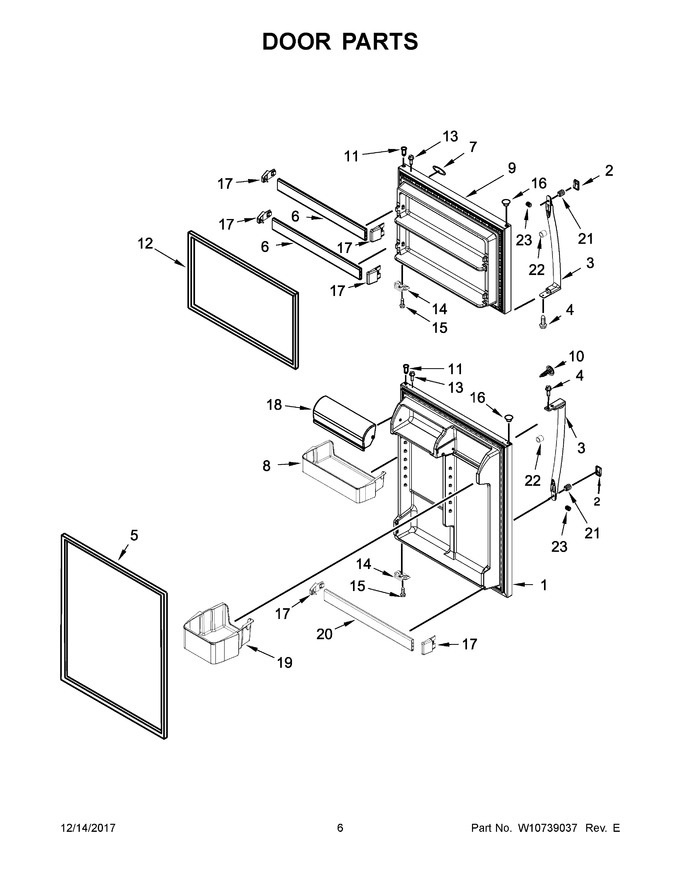

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10646224 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10646224) |
|
$ 848.03 | |||||
| 2 | W10917259 | Handle, Trim (grey) (Replaces: W10864207) |
|
Immediately | $ 59.13 | ||||
| 3 | W10837577 | Handle, Door (white) (Replaces: W10580722) |
|
Immediately | $ 106.24 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | W10860480 | Door Gasket, Magnetic (white) (Replaces: W10692652) |
|
$ 309.74 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 125.96 | |||||
| 7 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | LW10646225 | Freezer Door (includes Illustration 12) (white) (Replaces: W10646225) |
|
$ 842.50 | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | W11189115 | Thimble-top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 12 | W10741118 | Door Gasket, Magnetic (white) (Replaces: W10692653) |
|
$ 332.03 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 16 | WP2212648 | Hole Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 55.68 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 34.34 | |||||
| 19 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 20 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 127.34 | |||||
| 21 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 16.11 | |||||
| 22 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.66 | ||||
| 23 | W11366418 | Set Screw (silver) (stainless Model) (Replaces: W10010140) |
|
Immediately | $ 18.43 | ||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 19.54 | |||||
| 10B | W10830982 | Hole Plug (grey) (Replaces: W10663739) |
|
Immediately | $ 19.54 | ||||
| 12A | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 335.31 | |||||
| 12B | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 279.10 | ||||
| 16A | WP2212651 | Hole Plug, Hinge Sleeve (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 16B | WP2254517 | Hole Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 1A | LW10648575 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10648575) |
|
$ 728.33 | |||||
| 1B | LW10648584 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10648584) |
|
$ 959.70 | |||||
| 3A | W10839425 | Handle, Door (black) (Replaces: W10656970) |
|
$ 170.06 | |||||
| 3B | W10837029 | Handle, Door (stainless) (Replaces: W10653471) |
|
Immediately | $ 213.26 | ||||
| 5A | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 330.95 | |||||
| 5B | W10249195 | Door Gasket, Magnetic (grey) (Replaces: W10171475) |
|
$ 335.80 | |||||
| 9A | LW10648577 | Freezer Door (includes Illustration 12) (black) (Replaces: W10648577) |
|
$ 842.76 | |||||
| 9B | LW10648583 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10648583) |
|
$ 938.99 | |||||
| NI | W10676240 | Door Reversal Kit Stainless Model |
|
$ 112.54 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11416038 | Door Reversal Kit, White Model (Replaces: W10662124) |
|
$ 83.24 | |||||
| NI | W11415957 | Door Reversal Kit, Black Model (Replaces: W10676239) |
|
$ 80.44 |
