SELECT A DIAGRAM

01 - Cover Sheet

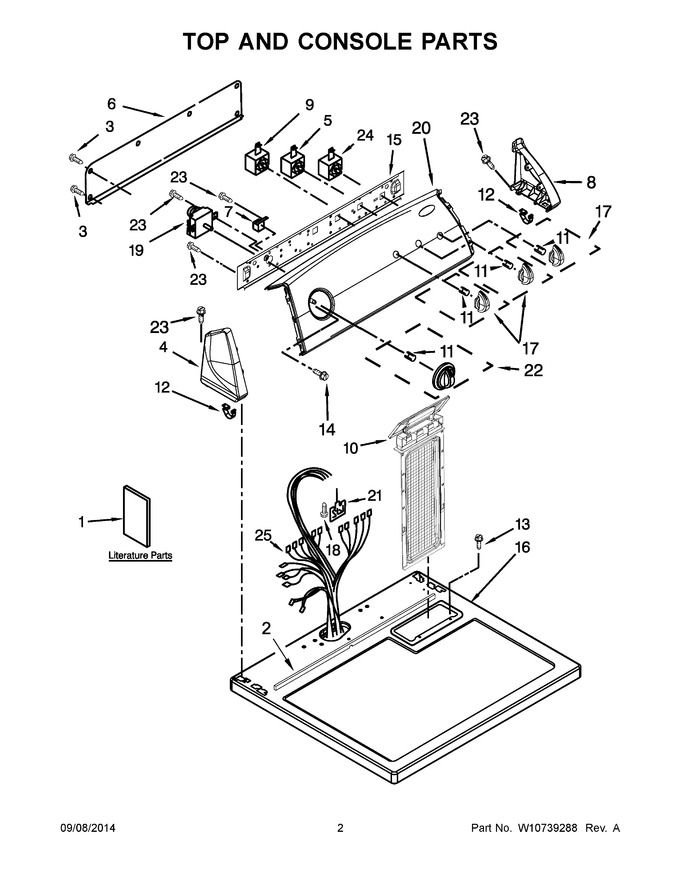

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329764		Instructions, Installation		Appelez-nous	-
2	W10316616		Seal, Foam				$ 27.79
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
5	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 152.79
6	W10103406		Panel, Rear (console)				$ 135.31
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
9	WP8578354		Switch, Rotary Temperature   (Replaces: 8578354)			Immediately	$ 173.03
10	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
15	8566052		Bracket, Control		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	W10034380		Assembly, Control Knob (white/metallic)				$ 25.06
18	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
19	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 182.13
20	W10354025		Assembly, Panel And Bracket		Appelez-nous	-
21	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
22	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
23	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
24	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
25	W10640703		Harness, Wiring		Appelez-nous	-
1A	W10422711		Use & Care Guide		Appelez-nous	-
1B	W10185993		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
