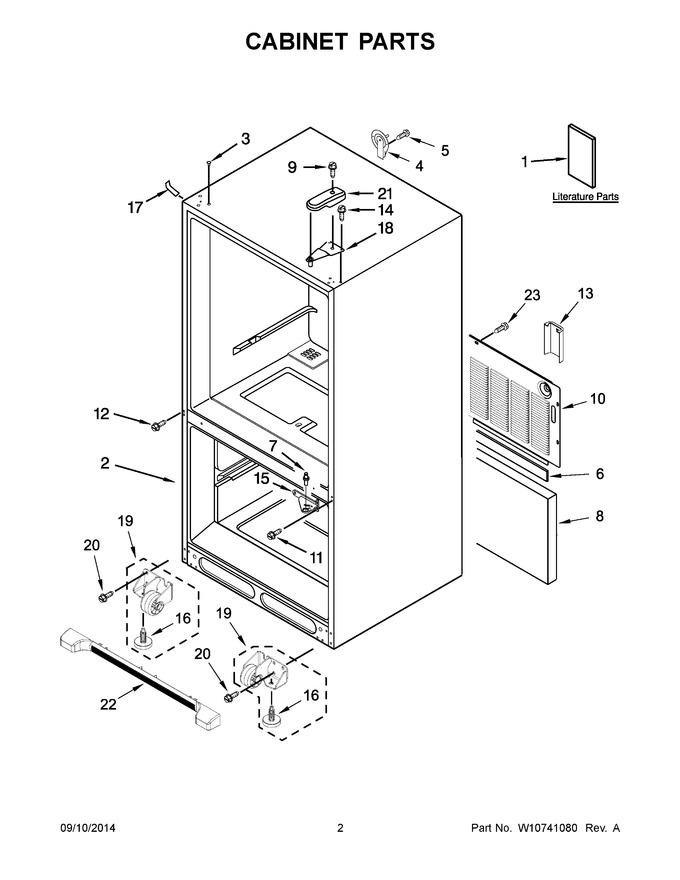

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10652709 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | WP12246610 | Plug, Button (grey) (Replaces: 12246610) |
|
Immediately | $ 8.15 | ||||
| 4 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 5 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 6 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 8 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | W10208592 | Cover, Valve |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (grey) (Replaces: 12607103AP) |
|
$ 69.79 | |||||
| 16 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 21 | W11106366 | Cover, Hinge (grey) (Replaces: 12477601AP) |
|
$ 75.82 | |||||
| 22 | WPW10534165 | Assembly, Grille (includes Clips) (grey) (Replaces: W10534165) |
|
Immediately | $ 60.90 | ||||
| 23 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 1A | W10710569 | Energy Guide |
|
- | |||||
| 1B | W10517966 | Tech Sheet |
|
- |
