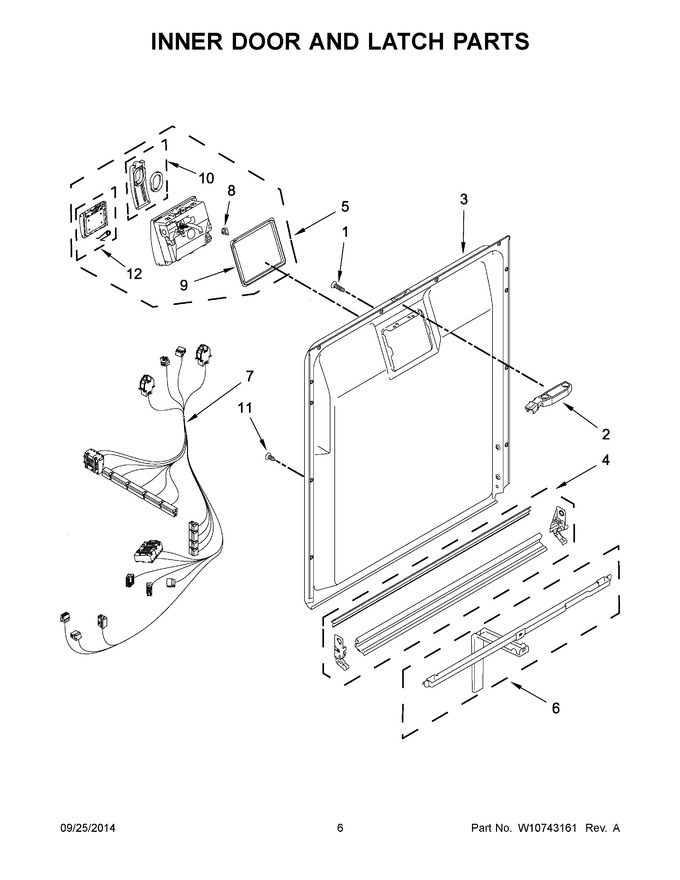

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10309090		Screw   (Replaces: W10309090)			Immediately	$ 69.17
2	W10736465		Switch, Door			Immediately	$ 235.75
3	W10736461		Inner Door				$ 754.36
4	W10736463		Seal, Door Bottom				$ 326.51
5	W10736457		Dispenser Assembly			Immediately	$ 370.35
6	W10736464		Channel, Overflow		Appelez-nous	-
7	W10736558		Wiring Harness				$ 365.92
8	W10736610		Sensor, Rinse Aid		Appelez-nous	-
9	W10736458		Gasket, Dispenser		Appelez-nous	-
10	W10736459		Lid, Rinse Aid		Appelez-nous	-
11	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 7.38
12	W10736460		Lid, Dispenser		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
