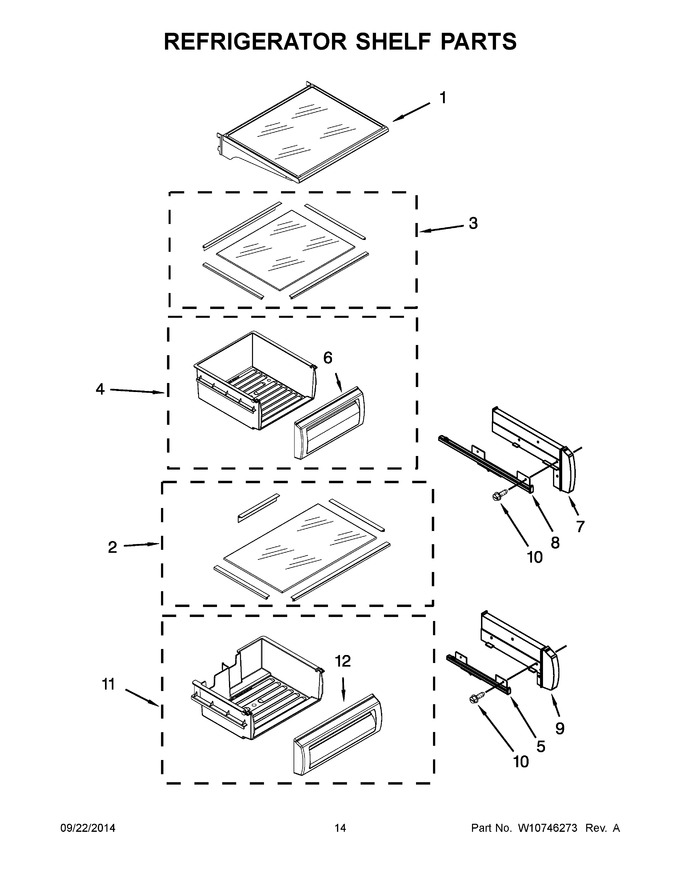

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222593		Assembly, Shelf   (Replaces: W10141495)				$ 288.14
2	W10151216		Assembly, Meat Pan Cover				$ 92.42
3	W10151214		Assembly, Crisper Cover				$ 196.14
4	W10407625		Pan, Crisper				$ 160.31
5	2302954		Slide, Meat Pan (left Hand)				$ 309.14
6	W10407625		Front, Crisper Pan   (Replaces: 2256249)				$ 160.31
7	2256223		Spacer, Crisper (left Hand)				$ 76.04
8	2302956		Slide, Crisper (left Hand)				$ 268.86
9	2256243		Spacer, Meat Pan (left Hand)				$ 74.74
10	WP8533928		Screw (stainless) (left Hand)   (Replaces: 8533928)			Immediately	$ 7.43
11	W10407628		Assembly, Meat Pan				$ 153.84
12	WP2256367		Assembly, Meat Pan Front   (Replaces: 2256367)				$ 164.48
10A	W11830745		Screw (stainless) (right Hand)   (Replaces: 8533929)		Appelez-nous	-
5A	2302955		Slide, Meat Pan (right Hand)				$ 308.86
7A	2256222		Spacer, Crisper (right Hand)				$ 80.32
8A	2302957		Slide, Crisper (right Hand)				$ 205.50
9A	2256244		Spacer, Meat Pan (right Hand)				$ 93.33

    View Diagram in Separate Window       Print Part List
