01 - Cover Sheet
02 - Control Panel

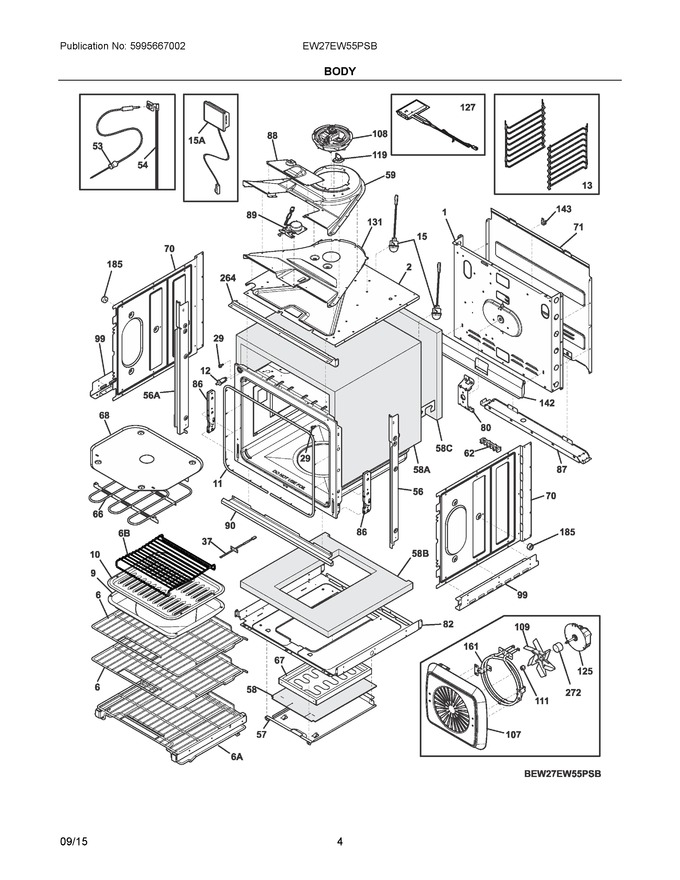

03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139003802 | Panel, Main Back |
|
- | |||||
| 2 | 139027802 | Shield, Insulation, Top |
|
- | |||||
| 6 | 808713918 | Rack Assembly, Ladder, Cobalt, W/handle |
|
- | |||||
| 9 | 316081901 | Pan, Broiler, Cobalt Blue |
|
$ 82.58 | |||||
| 10 | 316082001 | Insert, Broiler Pan, Cobalt Blue |
|
$ 58.99 | |||||
| 11 | 807545503 | Seal, Oven Door, Gray |
|
$ 95.29 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 48.93 | ||||
| 13 | 808713902 | Ladder Assembly, Kit, Cobalt, W/2 Ladders |
|
$ 90.88 | |||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 22.84 | ||||
| 29 | 316517601 | Bumper, Main Front, Cobalt Blue |
|
- | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 53.48 | ||||
| 53 | 5304503737 | Probe, Meat Temp, Black (Replaces: 318601306) |
|
$ 110.37 | |||||
| 54 | 139017203 | Receptacle Assy, Meat Probe (Replaces: 139017200) |
|
Immediately | $ 170.10 | ||||
| 56 | 318903728 | Trim, Side, Silver Mist, Rh |
|
$ 89.99 | |||||
| 57 | 139021200 | Panel, Service, Bake Element |
|
$ 35.90 | |||||
| 58 | 139022100 | Insualtion, Bake Element |
|
- | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 95.29 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 29.66 | ||||
| 66 | 5304523477 | Element, Broil, 6 Pass, 3400w (Replaces: 139028200) |
|
$ 262.06 | |||||
| 67 | 318902502 | Element, Hidden Bake, 1450w |
|
Immediately | $ 228.01 | ||||
| 68 | 808807902 | Shield, Broil Element |
|
- | |||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) (Replaces: 139000600) |
|
$ 80.05 | |||||
| 71 | 139022000 | Shield, Rear Wire, Main Back |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan (Replaces: 139021100) |
|
$ 16.54 | |||||
| 82 | 139003101 | Shield, Insulation, Lower |
|
$ 101.12 | |||||
| 86 | 139026900 | Receptacle, Hinge, Dual Spring |
|
$ 36.23 | |||||
| 87 | 139021900 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor (Replaces: 139027900) |
|
$ 26.78 | |||||
| 89 | 139021302 | Motor, Latch Assy., 2 Pole |
|
$ 163.96 | |||||
| 90 | 318903535 | Trim, Oven Bottom, Stainless |
|
$ 357.21 | |||||
| 99 | 318256201 | Bracket, Side, Bottom, (2) |
|
$ 63.00 | |||||
| 107 | 139013902 | Cover, Convection Fan |
|
$ 133.93 | |||||
| 108 | 318575614 | Motor, Cooling Fan, Dual Speed (Replaces: 318575613) |
|
$ 207.43 | |||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 32.34 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 21.26 | ||||
| 119 | 318578506 | Thermostat, Safety, 105c |
|
Immediately | $ 64.66 | ||||
| 125 | 139008504 | Motor, Convection Fan, 2400 Rpm, 2 Speed (Replaces: 139008503) |
|
Immediately | $ 189.52 | ||||
| 127 | 807123502 | Catalyst, Oven Vent |
|
- | |||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 81.11 | |||||
| 142 | 139021800 | Shield, Air Deflector, Main Back |
|
- | |||||
| 143 | 318172904 | Support, Wire |
|
- | |||||
| 161 | 8581390065036 | Element, Convection, 2500w (Replaces: 139006500) |
|
$ 52.92 | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 14.18 | |||||
| 264 | 139003501 | Trim, Vent, Black, Front |
|
$ 40.22 | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 19.69 | |||||
| 15A | 139001800 | Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb |
|
$ 124.22 | |||||
| 56A | 318903729 | Trim, Side, Silver Mist, Lh |
|
- | |||||
| 58A | 139001701 | Insulation, Oven Wrapper, 27", Top & Sides |
|
- | |||||
| 58B | 139021501 | Insulation, Oven Bottom |
|
$ 34.65 | |||||
| 58C | 139021401 | Insulation, Oven Back |
|
- | |||||
| 6A | 808713910 | Glide Rack, Assembly, Cobalt, W/handle |
|
$ 357.21 | |||||
| 6B | 318219500 | Rack, Broiler Pan |
|
- | |||||
| NI | 5304506983 | Box & Wires Assy (Replaces: 318394441) |
|
$ 148.30 | |||||
| NI | 5304496650 | Harness, Wiring, Communication, & Door Ltch Mtr |
|
$ 178.61 | |||||
| NI | 316303501 | Harness Assembly, Filter, Electrical, W/capacitors |
|
$ 94.34 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 10.24 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1 |
|
$ 6.30 | |||||
| NI | 5304470882 | Screw, Anti-tip, 8 - 5/8, Black, (2) |
|
$ 14.96 | |||||
| NI | 318165800 | Spacer |
|
$ 19.69 | |||||
| NI | 5304498539 | Harness, Wiring, Main |
|
- | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 | |||||
| NIA | 318231870 | Wiring Harness, Bake Element |
|
$ 92.69 | |||||
| NIA | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 12.60 | |||||
| NIA | 318579001 | Bracket, Wire |
|
$ 11.08 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.37 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 67.15 | ||||
| NIAA | 318946400 | Bulb, Halogen, G9, 40w, 120v |
|
Immediately | $ 54.80 | ||||
| NIB | 5303288566 | Screw, 8 X 1/4, (4) (Replaces: 5303323130) |
|
$ 2.36 |
