SELECT A DIAGRAM

01 - Cover Sheet

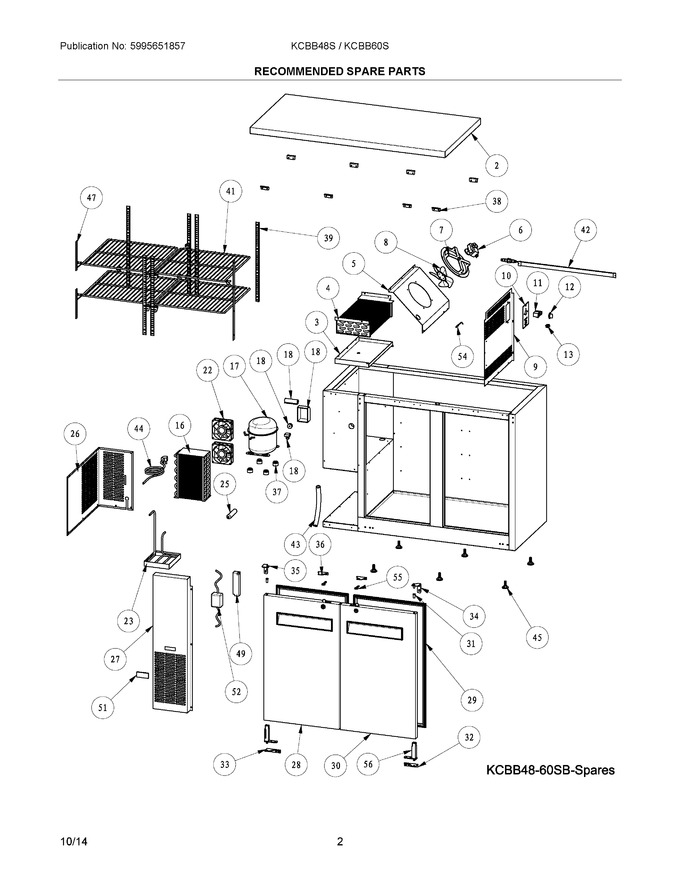

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304498393		Panel, Table Top		Appelez-nous	-
3	5304498394		Pan, Defrost Drain, Evaporator		Appelez-nous	-
4	5304498395		Evaporator		Appelez-nous	-
5	5304498396		Panel, Motor Mount, Evap Fan		Appelez-nous	-
6	5304493162		Motor, Evaporator Fan				$ 228.69
7	5304498397		Bracket, Motor Mount, Evap Fan		Appelez-nous	-
8	5304493160		Fan Blade, Evaporator Fan		Appelez-nous	-
9	5304498398		Cover, Evaporator		Appelez-nous	-
10	5304493112		Panel, Controller Mtg.		Appelez-nous	-
11	5304493158		Control, Temperature				$ 171.33
12	5304493114		Knob, Temp Controller, Rotary		Appelez-nous	-
13	5304493113		Switch, Lamp, Rocker		Appelez-nous	-
16	5304498399		Condenser		Appelez-nous	-
17	5304493171		Compressor		Appelez-nous	-
18	5304498391		Electrical Parts, Compressor		Appelez-nous	-
22	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
23	5304498400		Pan, Drain, Condensate		Appelez-nous	-
25	5304493106		Filter-drier		Appelez-nous	-
26	5304498401		Panel, Side/back, Louvered		Appelez-nous	-
27	5304498402		Panel, Service Access, Front		Appelez-nous	-
28	5304498431		Door, Steel, Left Side		Appelez-nous	-
29	5304498432		Gasket, Steel Door Seal		Appelez-nous	-
30	5304498433		Door, Steel, Right Side		Appelez-nous	-
31	5304493360		Hinge Pin, Door, Upper		Appelez-nous	-
32	5304493361		Hinge, Door, Bottom Right		Appelez-nous	-
33	5304493409		Hinge, Door, Bottom Left		Appelez-nous	-
34	5304498435		Hinge, Door, Upper Right		Appelez-nous	-
35	5304498436		Hinge, Door, Upper Left		Appelez-nous	-
36	5304498437		Base Plate, Lock		Appelez-nous	-
37	5304498390		Grommet, Compressor Mtg		Appelez-nous	-
38	5304498449		Block, Fastener, Top/back Bar		Appelez-nous	-
39	5304493483		Pilaster, Shelf Mount, 4 Screw		Appelez-nous	-
41	5304497341		Shelf, Right/left		Appelez-nous	-
42	5304493285		Lamp, Led		Appelez-nous	-
43	5304493401		Tube, Drain, 16 Mm Dia		Appelez-nous	-
44	5304493100		Power Cord, Electric, 115 V		Appelez-nous	-
45	5304493526		Foot, Leveling Screw, Adjustable		Appelez-nous	-
47	5304493396		Pilaster, Shelf Mount, 2 Screw		Appelez-nous	-
49	5304493305		Ballast, Lamp		Appelez-nous	-
51	5304493083		Display, Temperature, Fahrenheit		Appelez-nous	-
52	5304493077		Transformer, Temp Display				$ 84.74
54	5304493402		Probe, Temp Display, Fahrenheit		Appelez-nous	-
55	5304492341		Key, Door Lock		Appelez-nous	-
56	5304492217		Door Closer, Hinge Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
