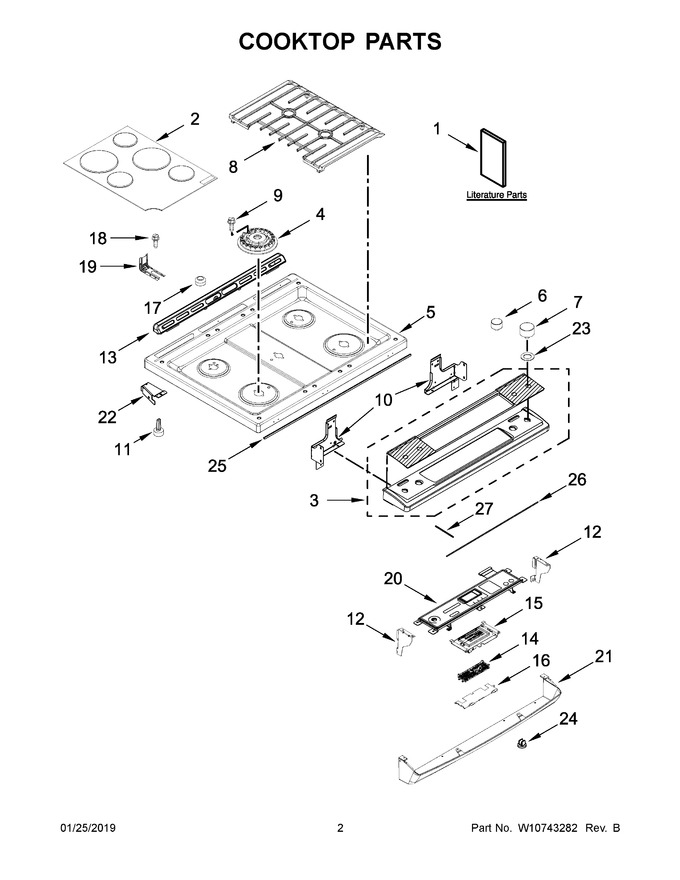

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11124000 | Installation Instructions |
|
- | |||||
| 2 | WPW10479988 | Kit, Burner Cap (black) (Replaces: W10479988) |
|
$ 221.78 | |||||
| 3 | W10660995 | Console (stainless) |
|
Immediately | $ 338.14 | ||||
| 4 | WPW10256028 | Spreader, Flame (left Front & Right Front) (Replaces: W10256028) |
|
Immediately | $ 148.38 | ||||
| 5 | W10712112 | Cooktop (black) (Replaces: W10474659) |
|
$ 833.21 | |||||
| 6 | W11676623 | Knob (mini) (stainless) (Replaces: W10596749) |
|
$ 39.39 | |||||
| 7 | W11208247 | Knob (stainless) (Replaces: W10596747) |
|
Immediately | $ 71.73 | ||||
| 8 | W11175813 | Kit, Grate (black) (Replaces: W10432521) |
|
$ 328.43 | |||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 11 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 15.85 | ||||
| 12 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 13 | W11256338 | Trim, Vent (black) (Replaces: W10577781) |
|
$ 185.00 | |||||
| 14 | W11050553 | Control, Maxwell (Replaces: W10759296) |
|
$ 425.07 | |||||
| 15 | W11105615 | Assembly, Display (Replaces: W10759325) |
|
Immediately | $ 474.88 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 17 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 18 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 19 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 21.77 | ||||
| 20 | W10612580 | Assembly, Active Overlay (stainless) |
|
$ 340.88 | |||||
| 21 | W11218703 | Panel, Lower Console (black) (Replaces: W10570527) |
|
Immediately | $ 146.04 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 23 | W11131701 | Bezel (black) (Replaces: W10739036) |
|
$ 20.94 | |||||
| 24 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 25 | W10802441 | Gasket, Console/cooktop (Replaces: W10612719) |
|
Immediately | $ 21.36 | ||||
| 26 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 19.20 | |||||
| 27 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 20.63 | |||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 10B | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 12A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 1A | W11123983 | Use And Care Guide |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | W10844277 | Wiring Diagram |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 4A | WPW10256025 | Spreader, Flame (right Rear & Center) (Replaces: W10256025) |
|
Immediately | $ 81.96 | ||||
| 4B | W10836467 | Spreader, Flame (left Rear) (Replaces: W10464795) |
|
$ 42.87 | |||||
| NI | W11198972 | Harness, Bake/broil (Replaces: W10754419) |
|
$ 32.26 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 202.46 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10911845 | Harness, Main |
|
$ 204.73 | |||||
| NI | W10580229 | Wire, Ground |
|
$ 34.40 |
