Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 83.56

2 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 13.25

3 WPW10318550 Console (stainless)   (Replaces: W10318550) Special Order $ 245.91

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 16.74

5 W10850697 Control Mrc2   (Replaces: W10708788) Appelez-nous -
6 W10755955 Assembly, Overlay (stainless)   (Replaces: W10696088) In-Stock Immediately $ 422.81

7 W10278697 Shield, Vent In-Stock Immediately $ 165.00

8 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 6.57

9 W10296773 Cover, Backguard Special Order $ 175.07

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 32.00

1A W10319111 Support, Backguard (black (right)) Special Order $ 43.80


    View Diagram in Separate Window     Print Icon   Print Part List

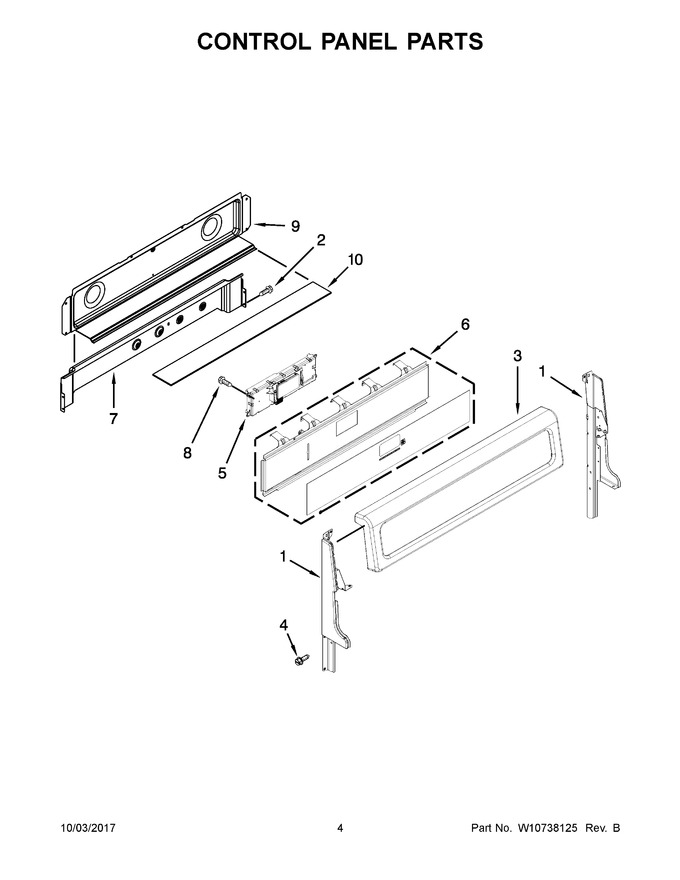

Diagram for IGS900DS00
