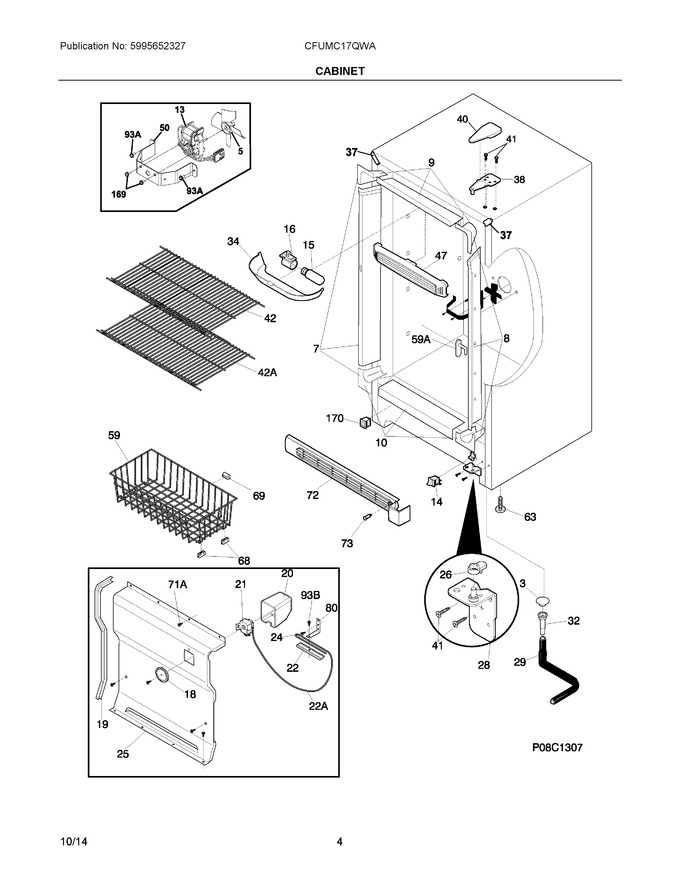

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 19.28
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 54.48
6	297435601		Breaker				$ 50.35
7	297435600		Breaker, W/lock				$ 43.94
9	297403901		Breaker, Top				$ 61.58
10	297403902		Breaker, Bottom				$ 67.58
13	297250001		Motor-fan, 115v				$ 165.80
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 81.18
16	297139501		Socket, Light/lamp, 25 W				$ 21.69
18	216707200		Knob, Temp Control				$ 49.00
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
20	297013800		Cover-control Housing				$ 80.43
21	5304514707		Control-temperature   (Replaces: 297216034)			Immediately	$ 78.32
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297442700		Cover, Evaporator		Appelez-nous	-
26	297415900		Ramp, Door Closer			Immediately	$ 27.49
28	297416301		Hinge, 1/2" Pin, Bottom Rh   (Replaces: 297416300)				$ 16.87
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 15.27
32	5304511843		Drain   (Replaces: 297382000)				$ 15.27
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 8.43
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 21.69
40	297164400		Cover-hinge				$ 14.06
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
42	297441904		Shelf, 16.69 X 27.88, Wire				$ 104.42
59	5304497658		Basket				$ 130.94
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
68	08009560		Glide-basket				$ 39.17
69	5305878546		Bumper-basket				$ 8.03
72	297387921		Grille/kickplate   (Replaces: 297387902)				$ 67.73
73	5304495394		Light Signal, Round, Green			Immediately	$ 31.33
80	06594601		Bracket, Control				$ 17.64
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 14.18
170	297280400		Valve, Breather				$ 11.25
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 67.73
42A	5304528978		Shelf, 12.50 X 27.88, Wire   (Replaces: 297441903)				$ 106.84
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 16.01
NI	5304497059		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
