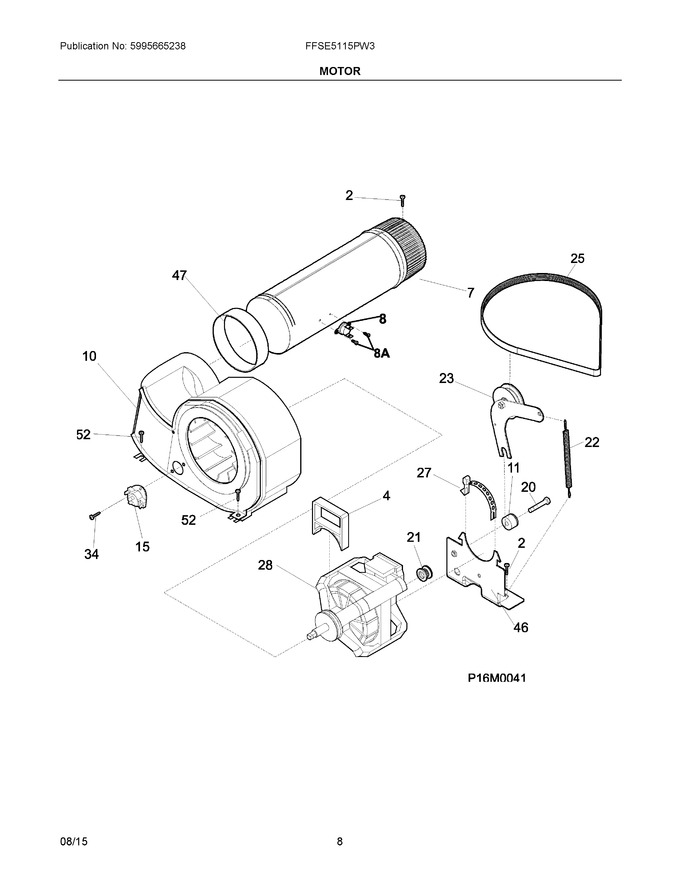

05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
4	131435200		Lock, Blower Housing				$ 81.13
7	5304509710		Tube, Exhaust, Rear   (Replaces: 134693900)				$ 29.93
8	134711401		Limiter, Thermal Exhaust, Flush Mount			Immediately	$ 39.42
10	137551110		Blower Housing, W/cover & Wheel			Immediately	$ 254.86
11	131749800		Spacer, Idler				$ 48.83
15	134587700		Thermistor, Control			Immediately	$ 62.65
20	131017900		Bolt, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 16.07
21	134693800		Pulley, Motor				$ 16.97
22	131601000		Spring, Idler Arm			Immediately	$ 91.33
23	134793511		Idler Arm Assy, W/pulley   (Replaces: 134793500)			Immediately	$ 49.48
25	134719300		Belt, "h", Poly V, 5 Rib			Immediately	$ 76.31
27	134242400		Clamp, Motor Mtg.			Immediately	$ 39.73
28	5304529782		Motor, Main Drive, 115v 60hz   (Replaces: 134693300)			Immediately	$ 319.58
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
46	134693500		Bracket, Motor Mounting				$ 38.12
47	131633300		Seal, Exhaust Tube				$ 19.06
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
8A	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 14.96
