01 - Cover Sheet
02 - Door
03 - Cabinet/controls
04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

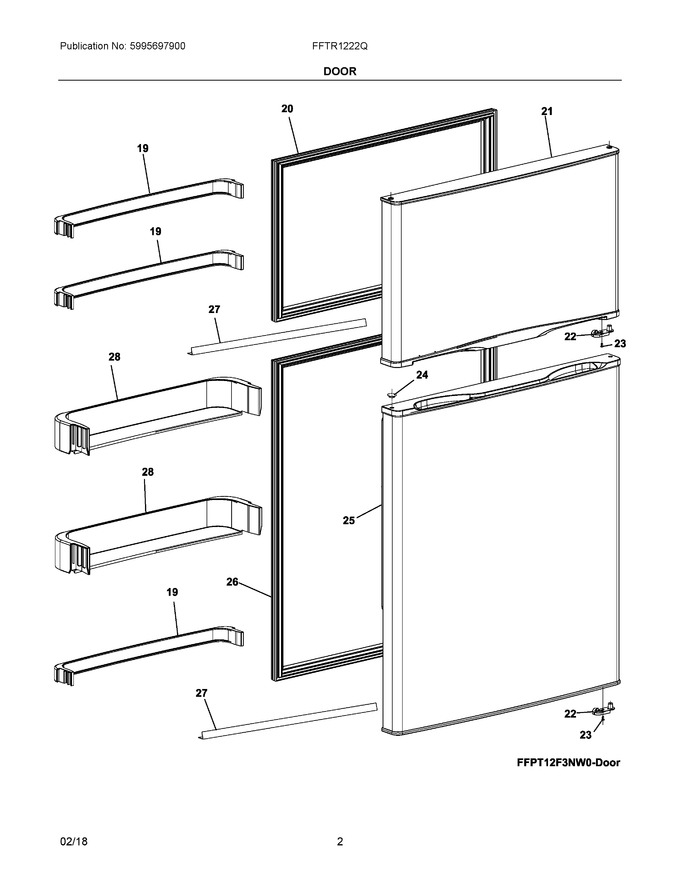

| 19 | 5304490985 | Rack, Door, Frzr/refr |
|
$ 120.38 | |||||
| 20 | 5304491297 | Gasket, Frzr Door, Gray |
|
$ 105.44 | |||||
| 21 | 5304491303 | Door, Frzr, Black, Assy |
|
- | |||||
| 22 | 5304490968 | Closer, Door Stop, W/hinge Pin |
|
$ 31.76 | |||||
| 23 | 5304491047 | Screw, (2) |
|
$ 12.02 | |||||
| 24 | 5304491299 | Plug, Hinge Hole, Black |
|
$ 5.88 | |||||
| 25 | 5304491482 | Door, Refrigerator, Black, Assy |
|
- | |||||
| 26 | 5304491301 | Gasket, Refr Door, Gray |
|
$ 126.32 | |||||
| 27 | 5304491326 | Seal, Inner Door |
|
$ 26.09 | |||||
| 28 | 5304490973 | Bin, Refr Door, Large |
|
$ 75.23 |
