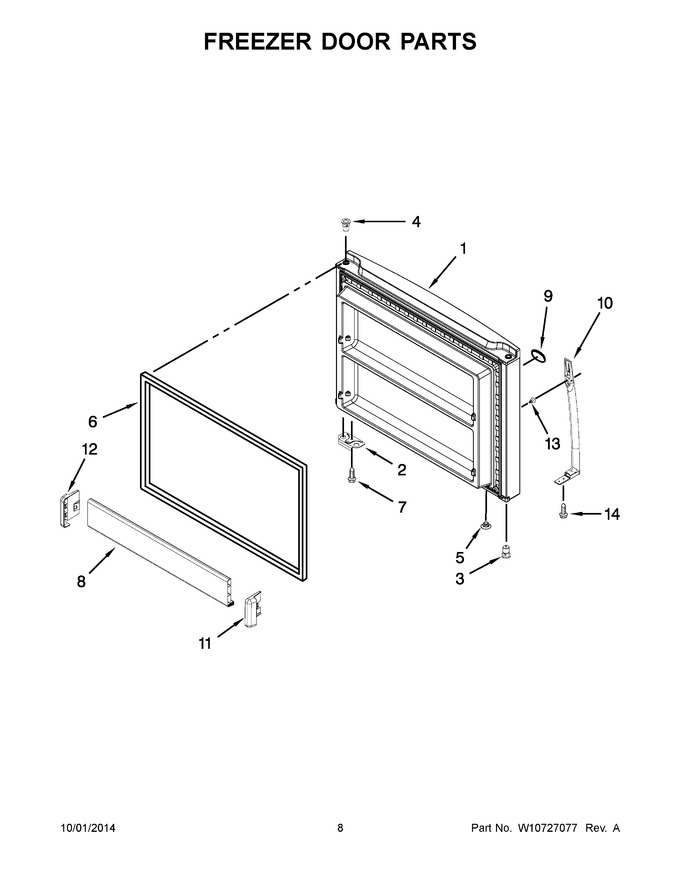

05 - Freezer Door Parts
06 - Refrigerator Door Parts
07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329576 | Freezer Door (includes Illus. 4 & 6) (white) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159327 | Door Gasket, Magnetic (beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 8 | W10469910 | Trim, Door |
|
$ 164.72 | |||||
| 9 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 10 | W10838896 | Handle (white) (Replaces: W10366329) |
|
$ 69.17 | |||||
| 11 | W10308871 | Cap, Trim End (right Hand) |
|
$ 10.44 | |||||
| 12 | W10338485 | Cap, Trim End (left Hand) |
|
$ 10.41 | |||||
| 13 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 10A | W10370624 | Handle (titanium Sparkle) |
|
$ 38.22 | |||||
| 1A | LW10576468 | Freezer Door (includes Illus. 4 & 6) (stainless) (Replaces: W10576468) |
|
$ 627.48 | |||||
| 5A | WP2254517 | Hole Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 6A | W11624958 | Door Gasket, Magnetic (grey) (Replaces: W10279559) |
|
$ 320.92 |
