01 - Cabinet
02 - Cavity
03 - Control Panel/top Assembly
04 - Door/drawer
05 - Gas Controls
06 - Supplemental Information
07 - Wiring Information (qdb)
SELECT A DIAGRAM
New Model Search:

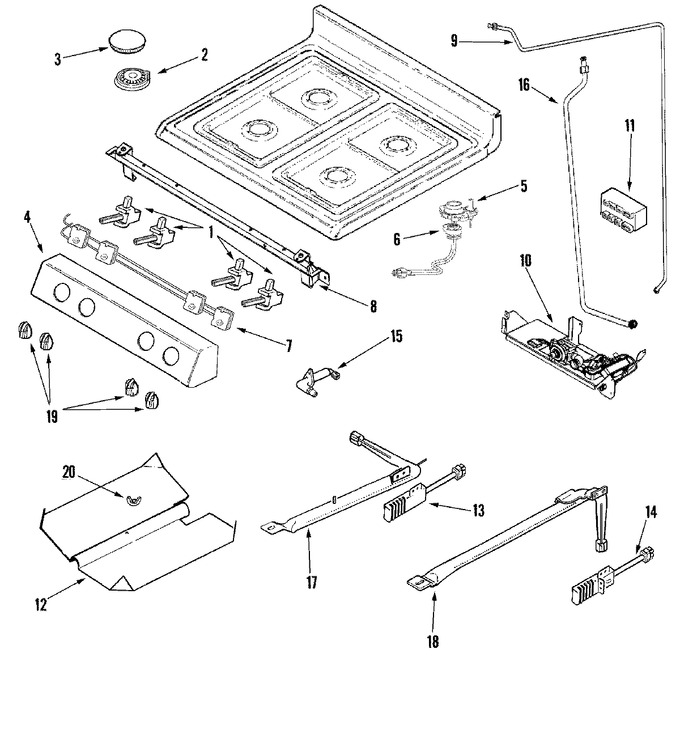

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010752 | Valve, 12k (copreci) | 10 |
|
- | ||||
| 1 | WP7502P499-60 | Valve, Burner (5k Copreci) (Replaces: 74010629) | 10 |
|
$ 260.82 | ||||
| 1 | WP74009857 | Screw, T-stat/valve Mtg (Replaces: 74009857) | 10 |
|
$ 5.50 | ||||
| 2 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 88.49 | ||||
| 2 | WPW10406243 | Base, Burner (5k) (Replaces: 74007411) | 10 |
|
Immediately | $ 37.22 | |||
| 2 | W11772394 | Screw, Self Tapping (Replaces: 74007410) | 10 |
|
Immediately | $ 12.16 | |||
| 3 | WP3191898 | Cap, Burner (smr-blk) (Replaces: 74007416) | 10 |
|
$ 67.62 | ||||
| 3 | WP74007925 | Cap, Burner (med-blk) (Replaces: 74007925) | 10 |
|
$ 96.46 | ||||
| 4 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 14.06 | |||
| 4 | 74011036 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 5 | WP74009958 | Ignitor, Top Burner Assy. (Replaces: 74009958) | 10 |
|
Immediately | $ 32.05 | |||
| 6 | 74008838 | Orifice Holder/tube Asy (lf) | 10 |
|
- | ||||
| 6 | 74008841 | Orifice Holder/tube Asy (lr) | 10 |
|
- | ||||
| 6 | 74008840 | Orifice Holder/tube Asy (rr) | 10 |
|
- | ||||
| 6 | 74008839 | Orifice Holder/tube Asy (rf) | 10 |
|
- | ||||
| 7 | WP74010630 | Harness, Switch (Replaces: 74010630) | 10 |
|
$ 236.73 | ||||
| 8 | 74008809 | Pipe, Manifold | 10 |
|
- | ||||
| 9 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 9 | 74008829 | Tubing, Supply | 10 |
|
- | ||||
| 10 | 74010218 | Valve/regulator Assembly | 10 |
|
- | ||||
| 11 | 74008821 | Module, Spark | 10 |
|
$ 236.25 | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 14.02 | |||
| 12 | 3601P336-45 | Baffle, Broil Burner (Replaces: 74008819) | 10 |
|
$ 216.28 | ||||
| 13 | 74007498 | Igniter, Oven | 10 |
|
Immediately | $ 87.11 | |||
| 13 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.77 | ||||
| 14 | WP7432P136-60 | Ignitor, Fs Bake/broil (Replaces: 74008064) | 10 |
|
Immediately | $ 94.02 | |||
| 14 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.77 | ||||
| 15 | 74008818 | Fitting, Broil Burner | 10 |
|
$ 81.92 | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 14.02 | |||
| 16 | 74008830 | Tubing, Broil | 10 |
|
$ 83.28 | ||||
| 17 | 74008820 | Burner, Broil | 10 |
|
- | ||||
| 18 | 31945701 | Burner, Bake | 10 |
|
- | ||||
| 19 | 74008850 | Knob, Burner (blk) | 10 |
|
$ 19.70 | ||||
| 20 | 7103P030-60 | Nut, Wing | 10 |
|
$ 7.08 |
