SELECT A DIAGRAM

01 - Cover Sheet

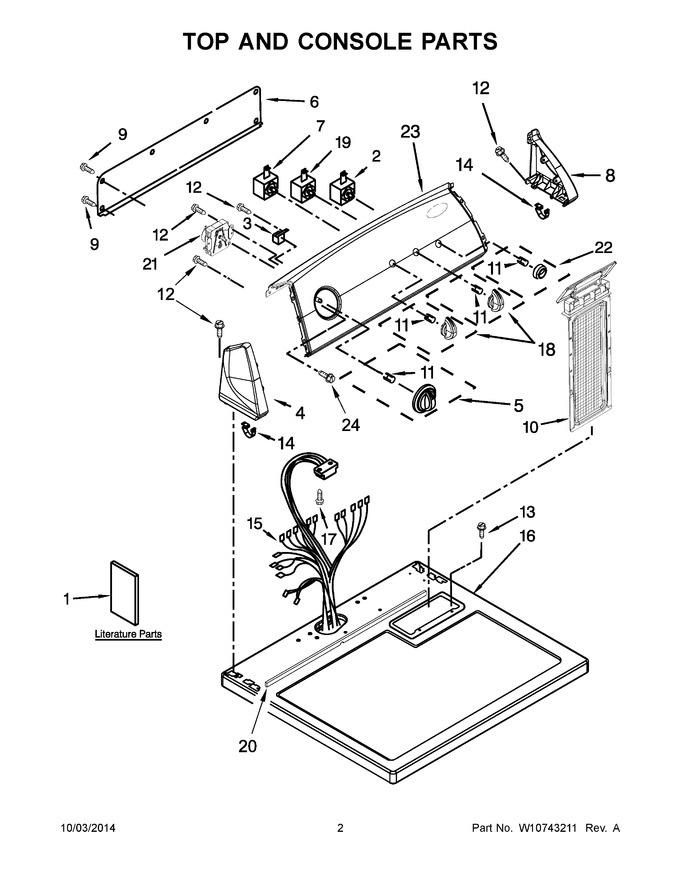

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514189		Installation Instructions		Appelez-nous	-
2	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 115.30
3	3952439		Buzzer, Mini		Appelez-nous	-
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 58.28
5	W10034750		Knob, Timer (white/metallic)				$ 28.27
6	W10103406		Panel, Rear (console)				$ 121.78
7	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 59.26
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	W10640692		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
18	W10034380		Knob, Control (white/metallic)				$ 25.06
19	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 137.51
20	W10316616		Seal, Foam				$ 25.01
21	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 170.80
22	WPW10034790		Knob, Push To Start (white/metallic)   (Replaces: W10034790)				$ 52.03
23	W10434962		Assembly, Panel & Bracket (white)		Appelez-nous	-
24	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
1A	W10454275		Use & Care Guide		Appelez-nous	-
1B	W10648591		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
