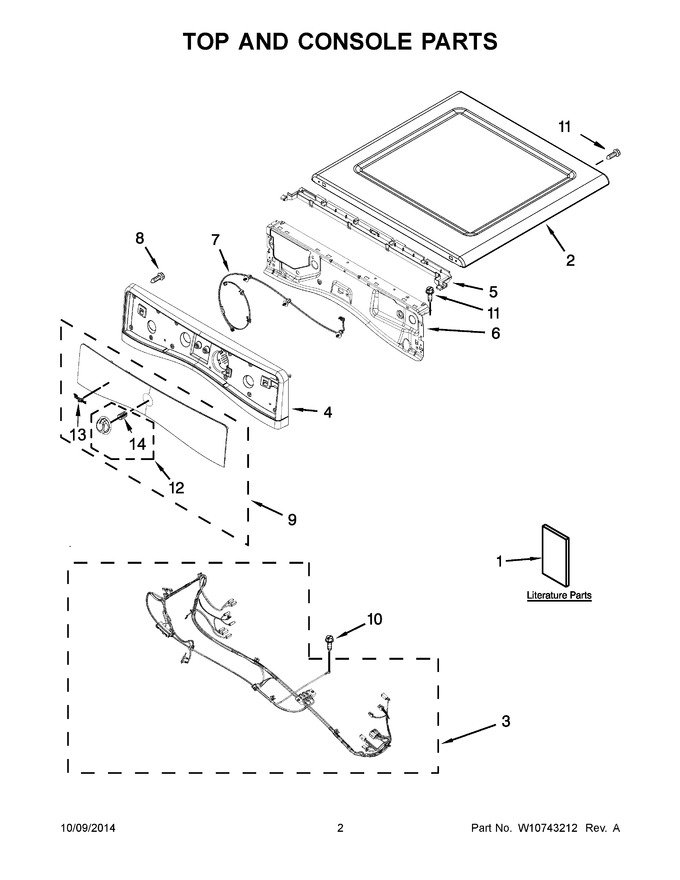

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - W10307147 Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10713777 | Use And Care Guide |
|
- | |||||
| 2 | WPW10316282 | Top (silver) (Replaces: W10316282) |
|
$ 346.19 | |||||
| 3 | W10651120 | Harness, Main Wiring |
|
- | |||||
| 4 | W10504272 | Panel, Console Assembly (silver) |
|
$ 316.67 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 33.61 | |||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 9 | W10750358 | Assembly, Overlay (diamond Steel) (Replaces: W10433150) |
|
$ 813.42 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10631128 | Knob, Timer (dryer) (silver) |
|
$ 43.42 | |||||
| 13 | W10433176 | Badge (diamond Steel) |
|
- | |||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 1A | W10606148 | Tech Sheet |
|
- | |||||
| 1B | W10714611 | Installation Instructions |
|
- | |||||
| 1C | W10701405 | Steam Kit Installation Sheet |
|
- |
