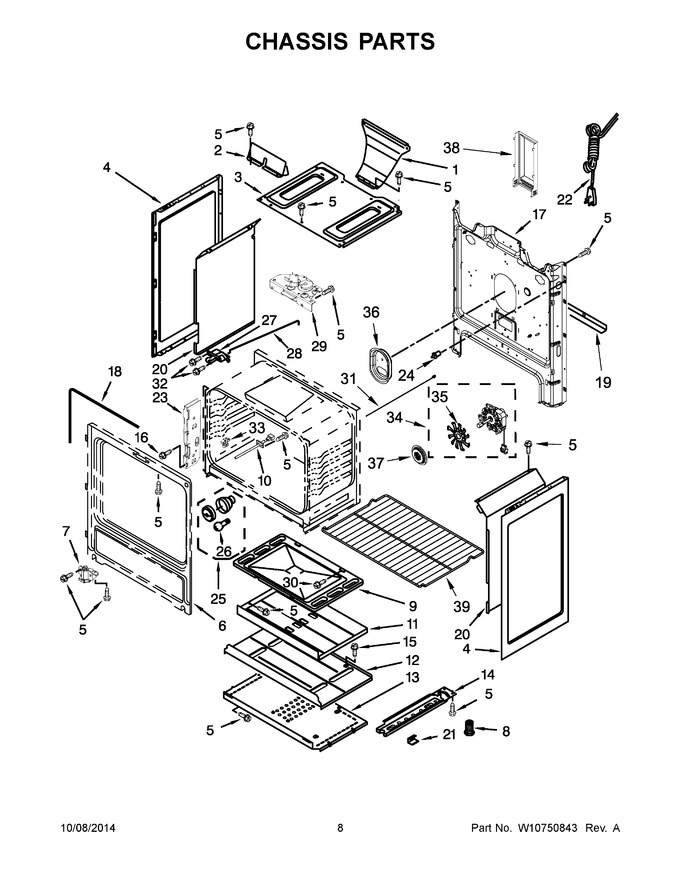

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Box, Flue (Replaces: W10153186) |
|
$ 142.02 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 67.06 | |||||
| 3 | W11379351 | Box, Burner (Replaces: 8273036) |
|
$ 57.77 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 160.65 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 6 | N/P | Frame, Front (not Serviced) |
|
- | |||||
| 7 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 8 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 9 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 207.95 | |||||
| 10 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 150.90 | ||||
| 11 | 8053967 | Baffle, Burner Oven |
|
$ 284.36 | |||||
| 12 | 8053969 | Shield, Heat |
|
$ 101.74 | |||||
| 13 | 8053968 | Shield, Lower |
|
- | |||||
| 14 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 15 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 7.42 | |||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 17 | W10416099 | Main, Back |
|
$ 87.01 | |||||
| 18 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 47.45 | ||||
| 19 | W10435470 | Brace, Main Back |
|
$ 73.57 | |||||
| 20 | 9761449 | Retainer, Insulation (left) |
|
$ 300.16 | |||||
| 21 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 22 | W11582239 | Cord, Power (Replaces: W10624590) |
|
$ 15.83 | |||||
| 23 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.43 | ||||
| 24 | W10627797 | Switch, Door |
|
- | |||||
| 25 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 82.22 | ||||
| 26 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 17.51 | ||||
| 27 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 230.72 | |||||
| 28 | W10078370 | Rod, Push Latch |
|
$ 85.72 | |||||
| 29 | WPW10107830 | Latch Assembly, Rear (Replaces: W10107830) |
|
$ 305.53 | |||||
| 30 | W10379120 | Screw |
|
- | |||||
| 31 | 9757239 | Rod, Door Switch |
|
$ 86.73 | |||||
| 32 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 33 | W10763667 | Glide, Drawer Front (Replaces: W10317898) |
|
Immediately | $ 101.75 | ||||
| 34 | W10794440 | Fan Motor, Conv (Replaces: W10167915) |
|
Immediately | $ 299.07 | ||||
| 35 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.47 | ||||
| 36 | W10134126 | Bracket, Fan |
|
$ 21.58 | |||||
| 37 | WPW10134124 | Cover, Fan (Replaces: W10134124) |
|
Immediately | $ 92.33 | ||||
| 38 | W10158780 | Cover, Fan |
|
$ 106.63 | |||||
| 39 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 54.79 | ||||
| 14A | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 20A | 9761448 | Retainer, Insulation (right) |
|
- | |||||
| NI | W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 111.28 | |||||
| NI | W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 110.46 |
