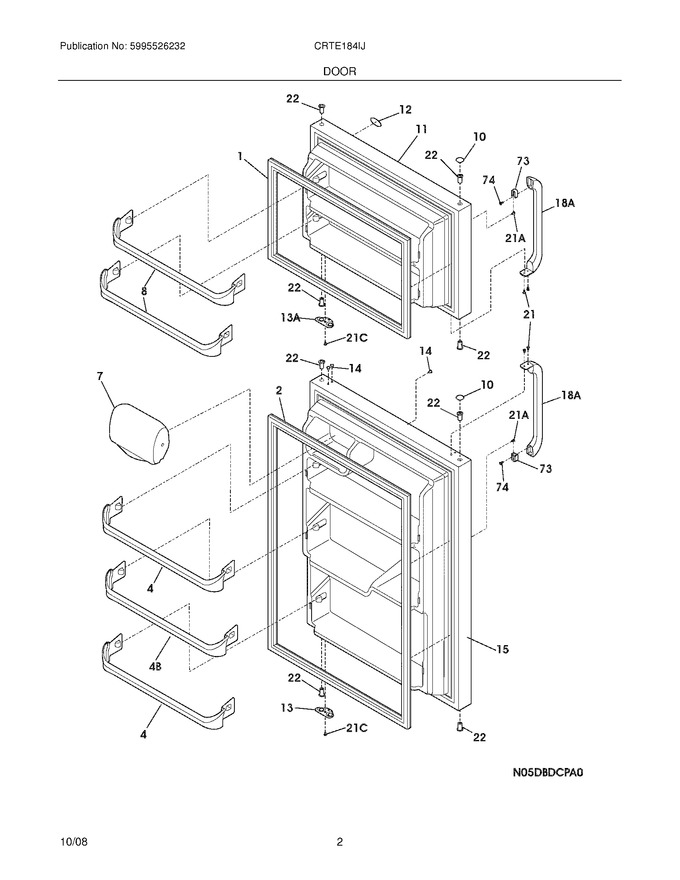

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
11 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240534901 | Rack-door |
|
Immediately | $ 52.25 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 10 | 240381303 | Plug-button,black ,hinge Brg Hole |
|
$ 77.52 | |||||
| 11 | 240410203 | Door-frzr,black ,complete Assy |
|
$ 521.25 | |||||
| 12 | 240415207 | Label-nameplate,black |
|
$ 3.55 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494003 | Plug-button,black |
|
$ 20.22 | |||||
| 15 | 240450413 | Door-refr,black ,complete Assy (Replaces: 240410305) |
|
$ 570.57 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 50.40 | ||||
| 74 | 215503203 | Screw,cr Pan Hd ,10-16 X 0.500 |
|
Immediately | $ 7.88 | ||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 23.63 | |||||
| 18A | 218428121 | Handle-door,gray ,w/block & Screw |
|
$ 63.79 | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 4B | 240534701 | Rack-door,4b |
|
Immediately | $ 32.00 | ||||
| F1 | 241872509 | Gasket-frzr Door,black ,magnetic |
|
Immediately | $ 182.39 | ||||
| F2 | 241872512 | Gasket-refr Door,black ,magnetic |
|
Immediately | $ 183.77 |
