SELECT A DIAGRAM

01 - Cover Sheet

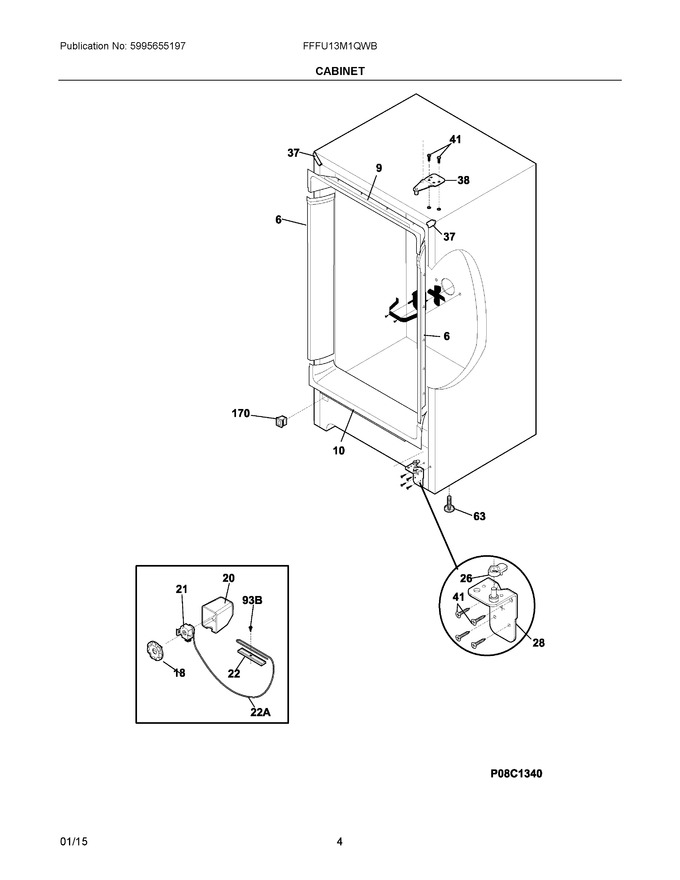

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	297435603		Breaker, U12/u14, No Lock		Appelez-nous	-
9	297381501		Breaker, Top				$ 48.91
10	297381502		Breaker, Bottom		Appelez-nous	-
18	216707200		Knob, Temp Control				$ 49.00
20	297013800		Cover-control Housing				$ 80.43
21	5304514707		Control-temperature   (Replaces: 297216034)			Immediately	$ 91.00
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
26	297415900		Ramp, Door Closer			Immediately	$ 27.49
28	297416301		Hinge, 1/2" Pin, Bottom Rh   (Replaces: 297416300)				$ 16.87
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 8.43
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 21.69
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
170	297280400		Valve, Breather				$ 11.25
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 67.73
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 4.21
NI	5304497888		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
