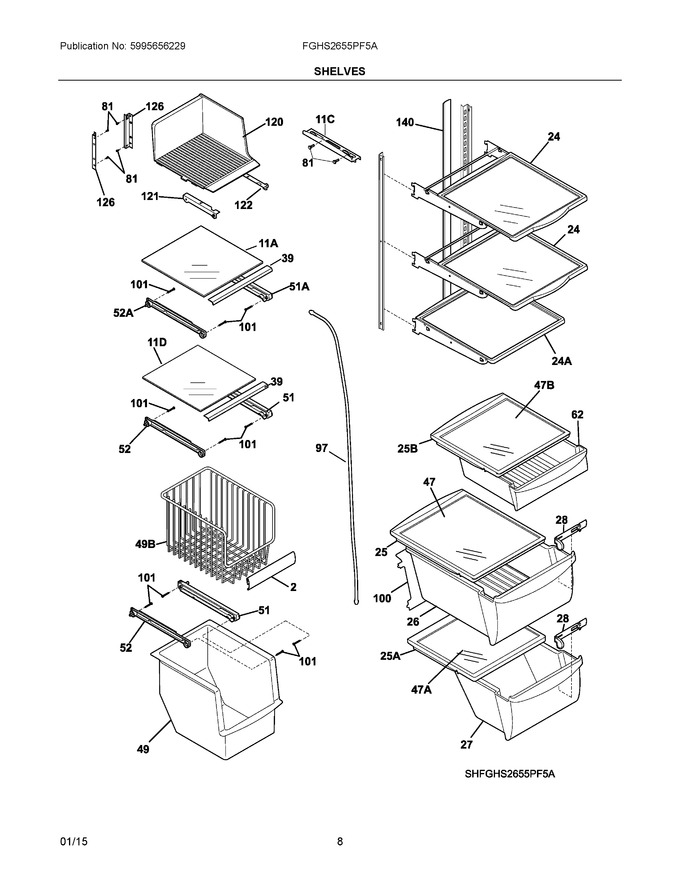

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510604 | Trim-basket |
|
$ 74.08 | |||||
| 24 | 240350150 | Shelf-"spill-safe", Cantilever, Sliding (Replaces: 240350136) |
|
$ 196.33 | |||||
| 25 | 240599301 | Cover-crisper Pan, Upper |
|
Immediately | $ 104.87 | ||||
| 26 | 240351061 | Pan-crisper, Upper |
|
Immediately | $ 122.23 | ||||
| 27 | 240351240 | Pan-crisper, Lower |
|
$ 226.05 | |||||
| 28 | 240362201 | Control-humidity |
|
$ 77.18 | |||||
| 39 | 240367602 | Trim-shelf, Front |
|
$ 50.40 | |||||
| 47 | 240350649 | Insert-pan Cover, Glass |
|
Immediately | $ 137.66 | ||||
| 49 | 240564401 | Basket-sliding |
|
Immediately | $ 176.56 | ||||
| 51 | 240343002 | Hanger-basket, Rh |
|
$ 72.47 | |||||
| 52 | 240343102 | Hanger-basket, Lh |
|
$ 77.52 | |||||
| 62 | 241969607 | Pan-meat (Replaces: 241969601) |
|
$ 227.19 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 100 | 240326304 | Cover-water Tank |
|
$ 81.74 | |||||
| 101 | 218493101 | Screw, Hex Washer Head, 8-18ab X 1-3/4 |
|
$ 14.96 | |||||
| 120 | 241691901 | Shelf-ice Cream |
|
$ 88.47 | |||||
| 121 | 241561001 | Rail-ice Cream Shelf, Lh |
|
$ 112.92 | |||||
| 122 | 241692001 | Rail-ice Cream Shelf, Lh |
|
$ 95.21 | |||||
| 126 | 241674401 | Channel, Auger Mtg, Lh |
|
$ 52.76 | |||||
| 140 | 241812501 | Channel, Wtr Tube Cover |
|
- | |||||
| 11A | 240350604 | Shelf-freezer, Glass, Upper |
|
$ 127.24 | |||||
| 11C | 240324101 | Shelf-pizza |
|
$ 66.57 | |||||
| 11D | 240350605 | Shelf-freezer, Glass, Lower |
|
$ 118.81 | |||||
| 126A | 241674402 | Channel, Auger Mtg, Rh |
|
$ 48.04 | |||||
| 24A | 240355270 | Shelf-"spill-safe", Fixed |
|
$ 189.59 | |||||
| 25A | 240350903 | Cover-crisper Pan, Lower |
|
$ 102.21 | |||||
| 25B | 241969501 | Cover-meat Pan |
|
Immediately | $ 106.90 | ||||
| 47A | 240350603 | Insert-pan Cover, Glass |
|
Immediately | $ 128.36 | ||||
| 47B | 240443384 | Insert-pan Cover, Glass |
|
$ 168.53 | |||||
| 49B | 240530504 | Basket-sliding, Upper, Full |
|
$ 207.81 | |||||
| 51A | 240395502 | Hanger-basket, Rh |
|
$ 81.11 | |||||
| 52A | 240395602 | Hanger-basket, Lh |
|
$ 68.51 | |||||
| NI | 242146265 | Label, Energy Guide |
|
- | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240362101 | Clip-slide, Cover |
|
$ 52.25 | |||||
| NI | 241595202 | Clip-slide, Crisper |
|
$ 20.22 | |||||
| NI | 240349801 | Clip-slide, Pan |
|
$ 22.75 | |||||
| NIA | 241868101 | Air Guide |
|
- | |||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow (Replaces: 242200101) |
|
$ 11.81 |
