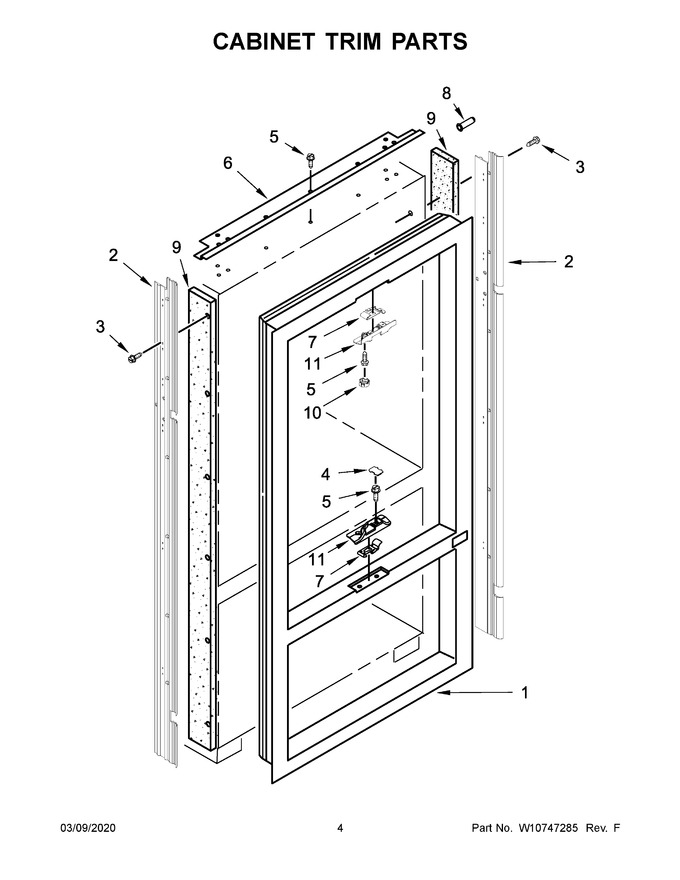

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Breaker, Trim (not Serviced)		Appelez-nous	-
2	W10714136		Assembly, Trim (includes Blind Threaded Insert) Left Hand (black)				$ 327.83
3	WPW10141645		Screw   (Replaces: W10141645)				$ 7.25
4	W10606744		Cover, Screw (square) (grey)		Appelez-nous	-
5	W11624204		Screw   (Replaces: 486194)				$ 13.25
6	W11623171		Trim, Cabinet (top) (grey)   (Replaces: W10605547)				$ 139.36
7	2309230		Cam, Mullion (top)				$ 14.55
8	WPW10121451		Insert, Blind Threaded   (Replaces: W10121451)			Immediately	$ 7.23
9	2005925		Seal, Side Trim				$ 83.72
10	W10606742		Cover, Screw (round) (grey)		Appelez-nous	-
11	W10606741		Contact, Mullion Top (grey)		Appelez-nous	-
11A	W10606743		Contact, Mullion Bottom (grey)		Appelez-nous	-
2A	W10714135		Assembly, Trim (includes Blind Threaded Insert) Right Hand (black)				$ 327.83
7A	2309231		Cam, Mullion (bottom)				$ 48.88
