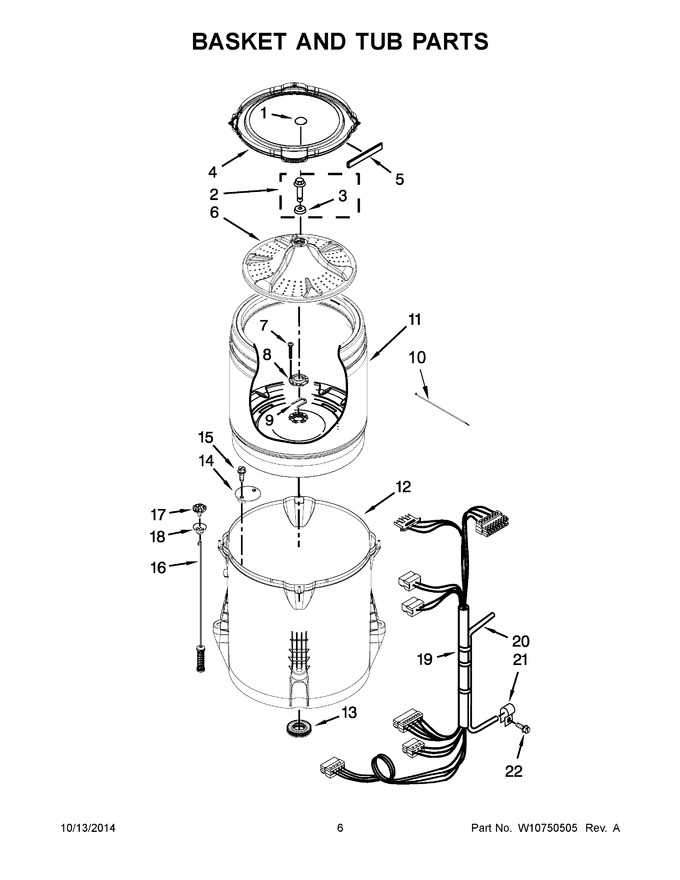

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10305259 | Cap, Impeller (Replaces: W10305259) |
|
$ 23.63 | |||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | W10215146 | Tub Ring |
|
$ 84.89 | |||||
| 5 | W10205824 | Absorber, Impact |
|
$ 80.64 | |||||
| 6 | WPW10215115 | Impeller (washplate) (Replaces: W10215115) |
|
$ 313.32 | |||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 7.55 | ||||
| 8 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 44.23 | ||||
| 9 | W11385424 | Retainer, Drive Block (Replaces: W10402178) |
|
Immediately | $ 12.97 | ||||
| 10 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.98 | |||||
| 11 | WPW10521297 | Basket Assembly (Replaces: W10521297) |
|
$ 512.88 | |||||
| 12 | W10324648 | Tub (Replaces: W10238301) |
|
$ 361.85 | |||||
| 13 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 93.50 | ||||
| 14 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 65.26 | |||||
| 15 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 16 | W10780051 | Damper Assembly, Tub Suspension (set Of 4-includes Items 17 & 18) (Replaces: W10257086) |
|
Immediately | $ 248.97 | ||||
| 17 | W10560146 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) |
|
- | |||||
| 18 | W10256551 | Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) |
|
- | |||||
| 19 | W10504122 | Harness, Lower |
|
- | |||||
| 20 | WP353244 | Hose, Pressure Switch (Replaces: W10429300) |
|
Immediately | $ 59.93 | ||||
| 21 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 22 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 |
