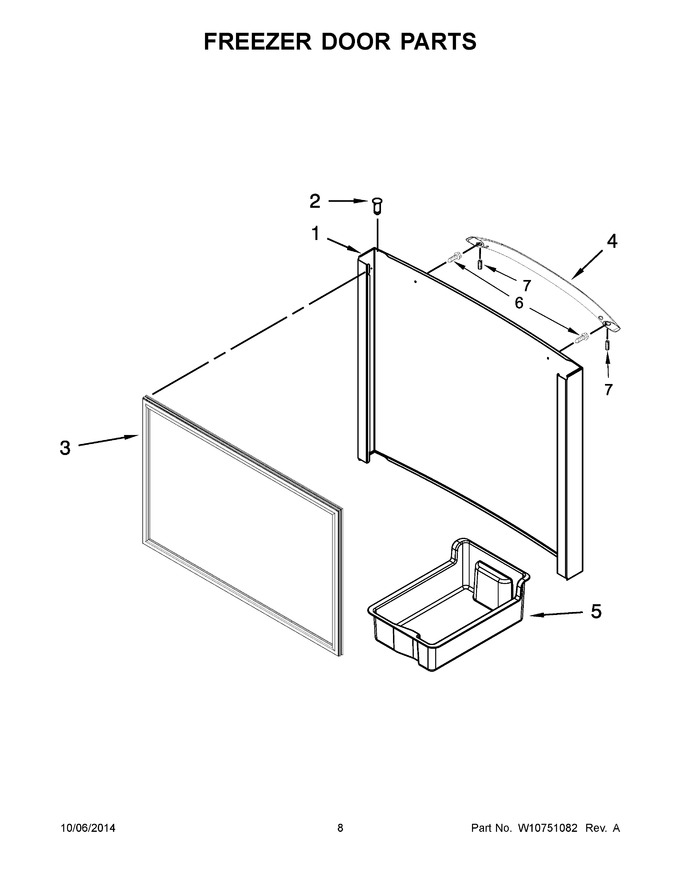

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10433606		Freezer Door (includes Items 2 & 3) (white)		Appelez-nous	-
2	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
3	W10460611		Gasket, Fc (beige)   (Replaces: W10465758)			Immediately	$ 304.19
4	W10865840		Handle Assembly (white)   (Replaces: W10357241)				$ 188.03
5	WPW10378263		Pan, Ice   (Replaces: W10378263)				$ 55.56
6	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
7	WP3400203		Screw, Set   (Replaces: W10287054)			Immediately	$ 5.04
1A	W10433607		Freezer Door (includes Items 2 & 3) (black)		Appelez-nous	-
1B	LW10433608		Freezer Door (includes Items 2 & 3) (stainless)   (Replaces: W10433608)				$ 710.98
3A	W11625017		Gasket, Fc (black)   (Replaces: W10465761)				$ 339.69
3B	W10836785		Gasket, Fc (grey)   (Replaces: W10465762)				$ 278.29
4A	W10686483		Handle Assembly (black)   (Replaces: W10389516)				$ 239.86
4B	W10830683		Handle Assembly (stainless)   (Replaces: W10357240)				$ 233.53
