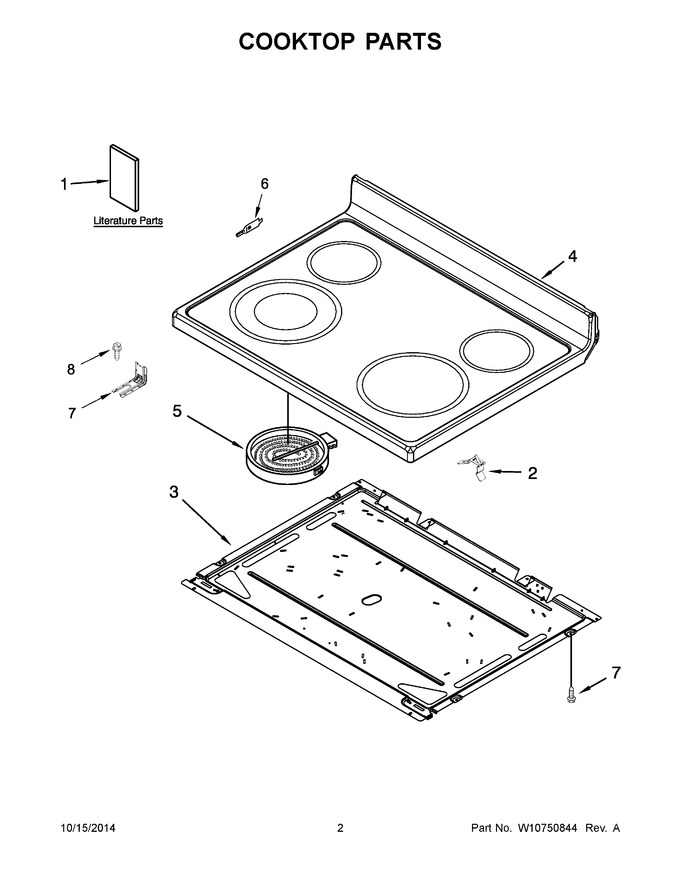

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10720131		Installation Instructions		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
4	W10789871		Cooktop (black)   (Replaces: W10696496)				$ 634.94
5	WPW10535150		Element (1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 386.10
6	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
7	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
8	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
1A	W10714063		Guide, Use And Care		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1D	W10708786		Tech Sheet (english)		Appelez-nous	-
1E	W10713743		Tech Sheet (french)		Appelez-nous	-
5A	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
5B	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 225.62
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10710248		Harness, Main				$ 276.86
NI	W11134596		Harness, Wire (cooktop Left)   (Replaces: W10349661)			Immediately	$ 229.76
NI	W10261085		Harness, Wire (cooktop Right)				$ 148.61
NI	W10084710		Harness, Sensor   (Replaces: W10174428)				$ 136.05
NI	W11825098		Harness, Hidden Bake   (Replaces: W10465644)				$ 86.33
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00

    View Diagram in Separate Window       Print Part List
