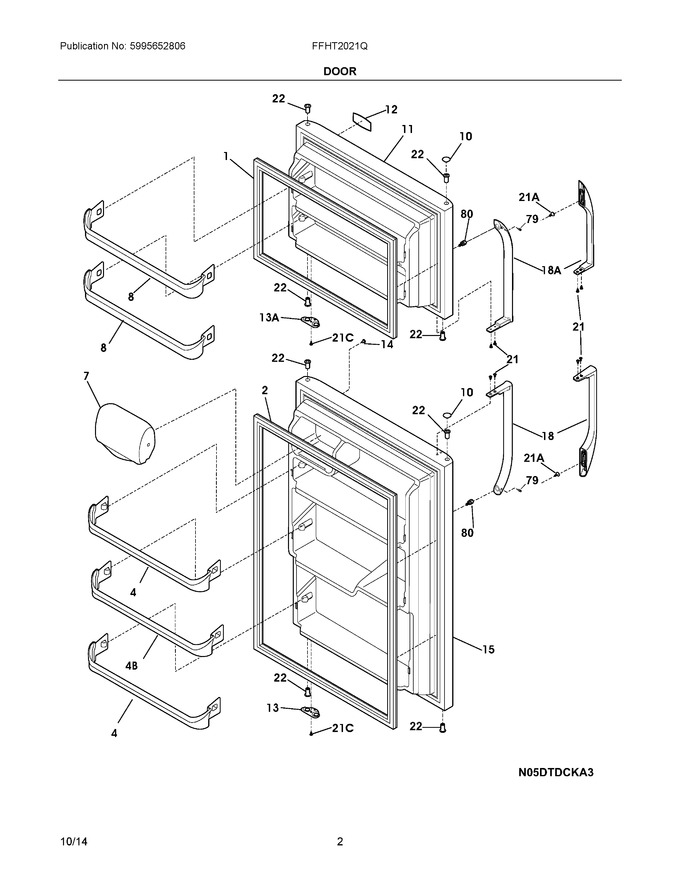

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door, Black, Magnetic				$ 207.90
2	242193214		Gasket-frzr Door, Black, Magnetic				$ 212.06
4	240534901		Rack-door			Immediately	$ 52.25
7	240337712		Door-dairy, W/o Graphics, Clear   (Replaces: 240337703)			Immediately	$ 40.45
8	240534801		Rack-door			Immediately	$ 55.13
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 18.54
11	242178015		Door-frzr, Stainless, Complete Assy				$ 563.96
12	242016301		Nameplate, Frigidaire				$ 4.73
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 16.85
14	240494007		Plug-button, Gray			Immediately	$ 17.69
14	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 20.22
15	242178112		Door-refr, Stainless, Complete				$ 663.97
18	242075501		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 242075202)				$ 259.53
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 8.43
74	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 36.67
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
13A	240312415		Door Stop, Black, Frzr				$ 23.63
18A	242075501		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 242075201)				$ 259.53
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
4B	240534701		Rack-door, 4b			Immediately	$ 32.00
