SELECT A DIAGRAM

01 - Cover Sheet

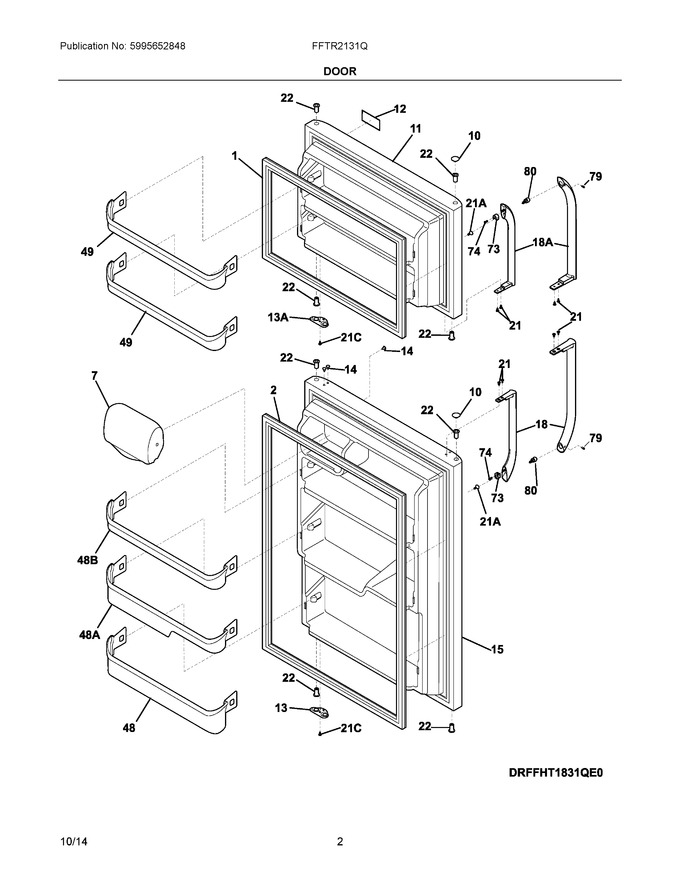

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door, Black, Magnetic				$ 207.90
2	242193214		Gasket-frzr Door, Black, Magnetic				$ 212.06
7	240337712		Door-dairy, W/o Graphics, Clear   (Replaces: 240337703)			Immediately	$ 40.45
10	240381303		Plug-button, Black, Hinge Brg Hole				$ 77.52
11	241798425		Door-frzr, Black, Complete Assy				$ 412.15
12	242016301		Nameplate, Frigidaire				$ 4.73
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 16.85
14	240494003		Plug-button, Black				$ 20.22
15	241798555		Door, Refr, Black				$ 619.09
18	5304506471		Handle-door, Black, Refr-rh/frzr-lh   (Replaces: 242059506)			Immediately	$ 106.18
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 8.43
48	240338101		Bin-door			Immediately	$ 58.19
49	240495805		Bin-door, Pseudo, Frzr				$ 56.60
73	218396701		Block-handle Mtg, Dovetail		Appelez-nous	-
74	215503203		Screw, Cr Pan Hd, 10-16 X 0.500			Immediately	$ 7.88
13A	240312415		Door Stop, Black, Frzr				$ 23.63
18A	5304506471		Handle-door, Black, Refr-lh/frzr-rh   (Replaces: 242059503)			Immediately	$ 106.18
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 33.55
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
48A	240337901		Bin-door			Immediately	$ 57.92
48B	240338001		Bin-door			Immediately	$ 38.84

    View Diagram in Separate Window       Print Part List
