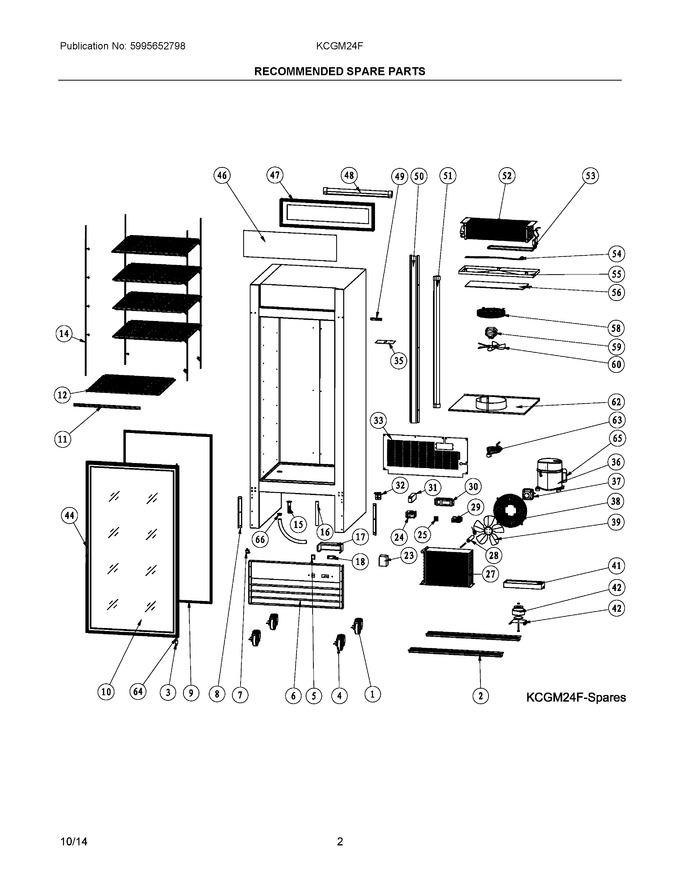

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304493319 | Caster, 4 Inch Diameter |
|
- | |||||
| 2 | 5304498297 | Rail, Caster Mount |
|
- | |||||
| 3 | 5304493267 | Hinge Pin |
|
- | |||||
| 4 | 5304493320 | Caster, 4 Inch Diameter, Locking |
|
- | |||||
| 5 | 5304493279 | Switch, Lamp, Green |
|
- | |||||
| 6 | 5304498299 | Grille, Vent, Black, Front, Louvers |
|
- | |||||
| 7 | 5304492259 | Switch, Lamp, Door Activated |
|
- | |||||
| 8 | 5304498300 | Block, Front Grille |
|
- | |||||
| 9 | 5304498301 | Gasket, Door Seal |
|
- | |||||
| 10 | 5304498302 | Door, Glass |
|
- | |||||
| 11 | 5304493132 | Tag Strip, Price Label, Plastic |
|
- | |||||
| 12 | 5304493131 | Shelf, Steel, Vinyl Coated |
|
- | |||||
| 14 | 5304498303 | Pilaster, Shelf Mount, 9 Screw |
|
- | |||||
| 15 | 5304493078 | Spout, Drain Tube |
|
- | |||||
| 16 | 5304492265 | Tube, Drain, Outer |
|
- | |||||
| 17 | 5304493269 | Shield, Water, Controller |
|
- | |||||
| 18 | 5304493083 | Display, Temperature, Fahrenheit |
|
- | |||||
| 23 | 5304493077 | Transformer, Temp Display |
|
$ 84.74 | |||||
| 24 | 5304492382 | Contactor, Ac |
|
- | |||||
| 25 | 5304492248 | Switch, Power |
|
$ 59.61 | |||||
| 27 | 5304498304 | Condenser |
|
- | |||||
| 28 | 5304492275 | Filter-drier |
|
$ 84.74 | |||||
| 29 | 5304492245 | Controller, Temp, (carel) |
|
$ 237.66 | |||||
| 30 | 5304493278 | Housing, Controller, Black |
|
- | |||||
| 31 | 5304493305 | Ballast, Lamp |
|
- | |||||
| 32 | 5304493329 | Hinge, Bottom |
|
- | |||||
| 33 | 5304493127 | Panel, Svce Access, Black, Rear |
|
- | |||||
| 35 | 5304493286 | Plate, Wiring Cover |
|
- | |||||
| 36 | 5304493029 | Compressor, W/built-in Ovld |
|
- | |||||
| 37 | 5304492271 | Motor, Condenser Fan |
|
- | |||||
| 38 | 5304492363 | Cover, Condenser Fan |
|
- | |||||
| 39 | 5304492362 | Fan Blade, Condenser Fan |
|
- | |||||
| 41 | 5304492276 | Drain Pan, Defrost |
|
- | |||||
| 42 | 5304493307 | Transformer Assy, Door Heater |
|
- | |||||
| 44 | 5304493280 | Handle, Door |
|
- | |||||
| 46 | 5304498305 | Panel, Front Display, Lamp Lens |
|
- | |||||
| 47 | 5304498307 | Frame, Lamp Housing |
|
- | |||||
| 48 | 5304493285 | Lamp, Led |
|
- | |||||
| 49 | 5304493281 | Hinge, Door, Upper Right |
|
- | |||||
| 50 | 5304498308 | Bracket, Lamp Mount, Inside Cab |
|
- | |||||
| 51 | 5304498309 | Lamp, Interior Light, Led |
|
- | |||||
| 52 | 5304498310 | Evaporator |
|
- | |||||
| 53 | 5304498311 | Heater, Evaporator, Defrost |
|
- | |||||
| 54 | 5304492344 | Heater, Drain Hose |
|
- | |||||
| 55 | 5304498312 | Pan, Defrost Drain, Evaporator |
|
- | |||||
| 56 | 5304498313 | Heater, Drain Pan |
|
- | |||||
| 58 | 5304498314 | Cover, Evaporator Fan |
|
- | |||||
| 59 | 5304498315 | Motor, Evaporator Fan |
|
- | |||||
| 60 | 5304492273 | Fan Blade, Condenser Fan |
|
- | |||||
| 62 | 5304498316 | Cover, Fan Assembly, Evaporator |
|
- | |||||
| 63 | 5304492267 | Power Cord, Electric, 115 V |
|
- | |||||
| 64 | 5304493120 | Bushing, Hinge Pin |
|
- | |||||
| 65 | 5304498317 | Electrical Parts, Compressor |
|
- | |||||
| 66 | 5304493080 | Cover, Drain |
|
- |
