View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

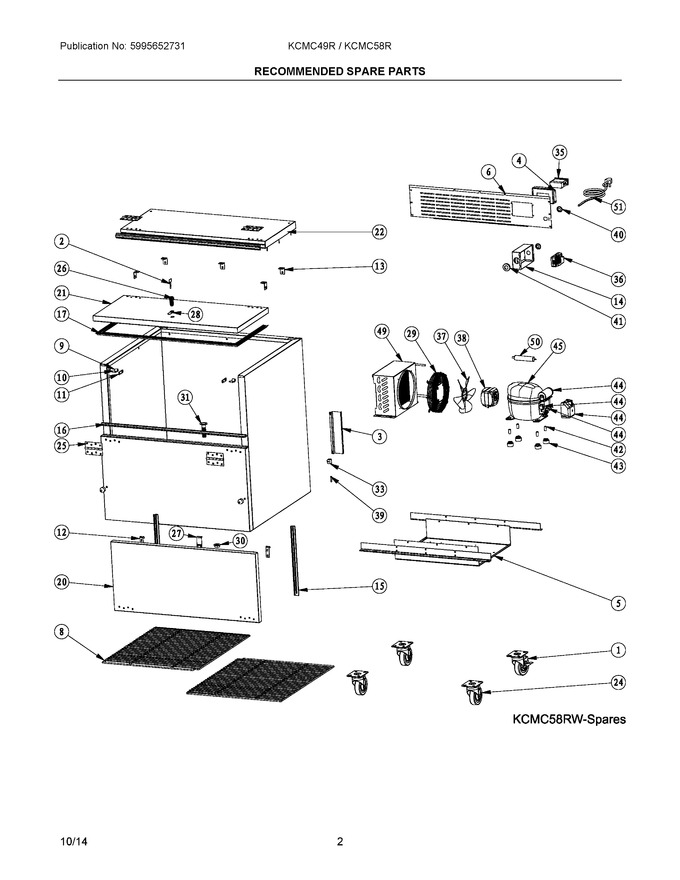

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304492262 | Caster, 4 Inch Diameter |
|
- | |||||
| 2 | 5304498347 | Key, Door Lock |
|
- | |||||
| 3 | 5304498348 | Cover, Temp Sensor |
|
- | |||||
| 4 | 5304498349 | Housing, Controller |
|
- | |||||
| 5 | 5304498351 | Base, Compressor |
|
- | |||||
| 6 | 5304498353 | Panel, Service Access, Rear |
|
- | |||||
| 8 | 5304498357 | Shelf, Bottom |
|
- | |||||
| 9 | 5304498359 | Cover, Lid Latch |
|
- | |||||
| 10 | 5304498360 | Pin, Lid Latch |
|
- | |||||
| 11 | 5304498361 | Latch, Lid |
|
- | |||||
| 12 | 5304498362 | Clasp, Front Lid |
|
- | |||||
| 13 | 5304498363 | Bracket, Connector, Right Angle |
|
- | |||||
| 14 | 5304498364 | Housing, Junction Box |
|
- | |||||
| 15 | 5304498365 | Gasket, Front Lid, Vertical |
|
- | |||||
| 16 | 5304498367 | Gasket, Front Lid, Horizontal |
|
- | |||||
| 17 | 5304498370 | Gasket, Top Lid |
|
- | |||||
| 20 | 5304498373 | Lid, Front |
|
- | |||||
| 21 | 5304498376 | Lid, Top |
|
- | |||||
| 22 | 5304498379 | Panel, Table Top |
|
- | |||||
| 24 | 5304492261 | Caster, 4 Inch Diameter, Locking |
|
- | |||||
| 25 | 5304498381 | Hinge, Lid Connector |
|
- | |||||
| 26 | 5304498382 | Lock |
|
- | |||||
| 27 | 5304498383 | Latch, Lock |
|
- | |||||
| 28 | 5304498384 | Bolt, Latch |
|
- | |||||
| 29 | 5304493299 | Cover, Condenser Fan |
|
- | |||||
| 30 | 5304493079 | Bracket, Drain Spout |
|
- | |||||
| 31 | 5304493078 | Spout, Drain Tube |
|
- | |||||
| 33 | 5304498385 | Clip, Temp Sensor Mt. |
|
- | |||||
| 35 | 5304492240 | Controller, Temp, (carel) |
|
- | |||||
| 36 | 5304498386 | Junction Box |
|
- | |||||
| 37 | 5304498387 | Fan Blade, Condenser Fan |
|
- | |||||
| 38 | 5304493104 | Motor, Condenser Fan |
|
- | |||||
| 39 | 5304492340 | Probe, Temp Controller |
|
$ 77.21 | |||||
| 40 | 5304493101 | Bushing, Strain Relief, Power Cord |
|
- | |||||
| 41 | 5304498388 | Bushing, Strain Relief |
|
- | |||||
| 42 | 5304498389 | Screw, Compressor Mtg. |
|
- | |||||
| 43 | 5304498390 | Grommet, Compressor Mtg |
|
- | |||||
| 44 | 5304498391 | Electrical Parts, Compressor |
|
- | |||||
| 45 | 5304493171 | Compressor |
|
- | |||||
| 49 | 5304498392 | Condenser |
|
- | |||||
| 50 | 5304493106 | Filter-drier |
|
- | |||||
| 51 | 5304493100 | Power Cord, Electric, 115 V |
|
- |
