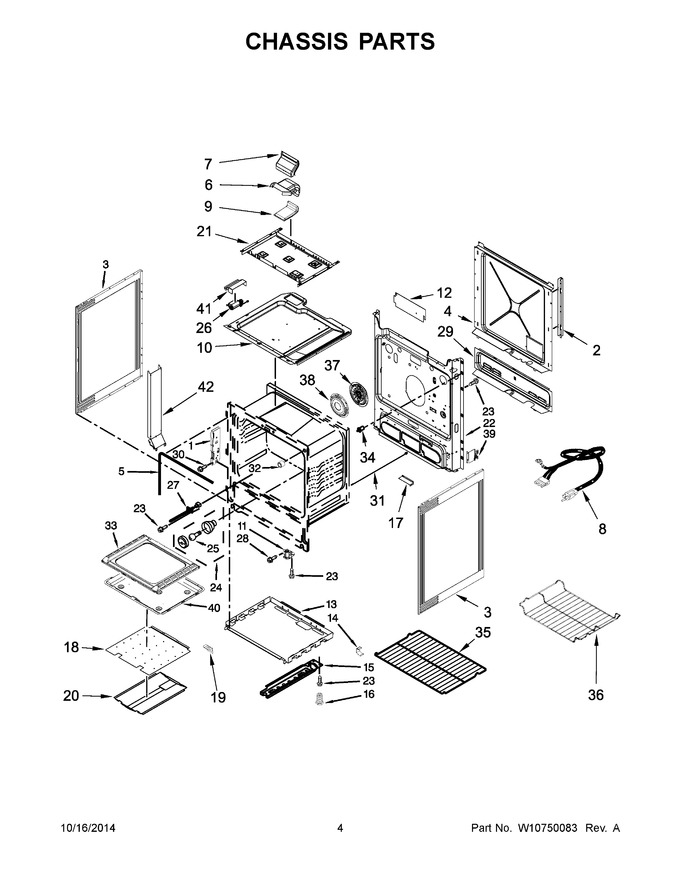

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
2	W10162241		Channel, Rear				$ 37.56
3	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 178.50
4	W11379354		Cover, Back   (Replaces: W10289172)			Immediately	$ 77.79
5	W11562931		Gasket, Door   (Replaces: W10162385)			Immediately	$ 87.76
6	W10162257		Duct, Cooktop				$ 28.76
7	W10614920		Assembly, Flue				$ 174.87
8	W11582239		Cord, Power   (Replaces: W10624590)				$ 17.59
9	W11243157		Assembly, Flue (upper)   (Replaces: W10311326)				$ 370.35
10	W10289168		Box, Burner				$ 204.90
11	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 32.59
12	W10655485		Shield, Wire				$ 39.78
13	W10541959		Shield, Bake			Immediately	$ 168.98
14	W10137382		Clip, Panel			Immediately	$ 48.42
15	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 62.66
16	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 8.24
17	W10655451		Guard, Splash				$ 76.02
18	W10323077		Diffuser, Flame				$ 281.78
19	W10035900		Support, Oven Bottom				$ 14.36
20	W11775243		Baffle, Burner   (Replaces: 3601P356-45)				$ 91.47
21	W10558276		Box, Burner				$ 224.36
22	W10289166		Back, Main		Appelez-nous	-
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
24	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 87.01
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
26	W11107275		Assembly, Cooling Fan   (Replaces: W10162259)			Immediately	$ 162.31
27	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
29	W10162249		Cover, Wire				$ 109.24
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
31	W11370463		Rod, Door Switch   (Replaces: W10273192)			Immediately	$ 66.87
32	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 56.06
33	WPW10211368		Bottom, Oven   (Replaces: W10211368)			Immediately	$ 337.76
34	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 144.44
35	WPW10531060		Rack, Oven   (Replaces: W10531060)			Immediately	$ 122.16
36	W11256463		Rack, Oven (gull-wing)   (Replaces: W10289145)			Immediately	$ 132.50
37	W11441001		Assembly, Convection   (Replaces: W10617484)			Immediately	$ 136.09
38	WPW10346154		Cover, Convection   (Replaces: W10346154)			Immediately	$ 77.67
39	W10273002		Bracket, Oven Support				$ 76.34
40	W11379356		Pan, Bake   (Replaces: W10273204)				$ 80.02
41	W10162255		Duct, Cover				$ 29.17
42	W10162254		Duct, Cooling				$ 134.45
15A	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 62.66
3A	WPW10575396		Panel, Side (white)   (Replaces: W10575396)				$ 148.71
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11688567		Insulation, Wrap   (Replaces: W10289173)				$ 128.01
NI	W11688363		Insulation, Back   (Replaces: W10162240)				$ 122.19
NI	W11684889		Insulation, Burner Box   (Replaces: W10716764)				$ 123.48
NI	4820F015-59		Insulation, Strap				$ 9.79
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
