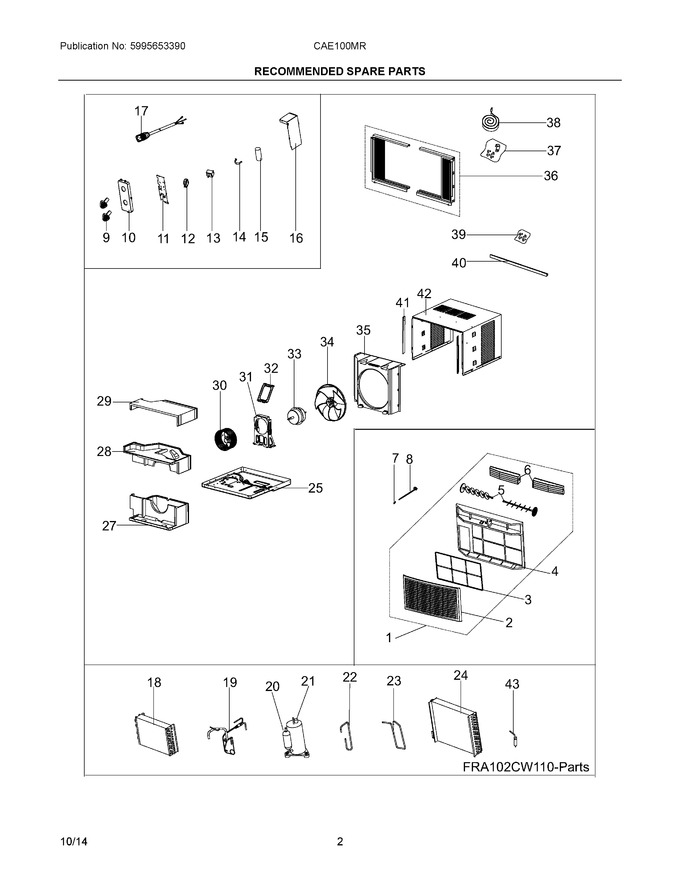

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304492068		Front Assembly, Complete Panel		Appelez-nous	-
2	5304491983		Panel, Grille, Front		Appelez-nous	-
3	5304482739		Filter, Air		Appelez-nous	-
4	5304492069		Frame, Front Assembly		Appelez-nous	-
5	5304491985		Louver, Vertical		Appelez-nous	-
6	5304491986		Louver, Horizontal		Appelez-nous	-
7	5304520877		Sleeve, Vent Door Assy, Guide   (Replaces: 5304476179)		Appelez-nous	-
8	5304476178		Door, Vent Control, With Lever		Appelez-nous	-
9	5304491987		Knob Assembly, Control, W/spring		Appelez-nous	-
10	5304492002		Control Panel, With Overlay		Appelez-nous	-
11	5304492003		Cover, Control Box		Appelez-nous	-
12	5304476765		Sensor Assembly, Temperature				$ 91.72
13	5304476766		Switch, Master, Rotary		Appelez-nous	-
14	5304471203		Strap, Capacitor Clamp		Appelez-nous	-
15	5304471294		Capacitor		Appelez-nous	-
16	5304492004		Control Box		Appelez-nous	-
17	5304476180		Power Cord, Electric, Lcdi				$ 211.10
18	5304491947		Evaporator, With, Capillary Tube		Appelez-nous	-
19	5304491948		Tube, Capillary		Appelez-nous	-
20	5304491949		Compressor, With Overload		Appelez-nous	-
21	5304491950		Overload Protector, Compressor		Appelez-nous	-
22	5304491951		Tube, Suction		Appelez-nous	-
23	5304476187		Tube, Discharge		Appelez-nous	-
24	5304491952		Condenser		Appelez-nous	-
25	5304485966		Base, Unit Chassis		Appelez-nous	-
27	5304485967		Scroll, Blower Housing, Bottom		Appelez-nous	-
28	5304485968		Scroll, Blower Housing, Middle		Appelez-nous	-
29	5304485969		Scroll, Blower Housing, Top		Appelez-nous	-
30	5304485443		Blower Wheel, Centrifugal Fan		Appelez-nous	-
31	5304476194		Support, Motor Mount, Left		Appelez-nous	-
32	5304476195		Support, Motor Mount, Right		Appelez-nous	-
33	5304485973		Motor, Fan				$ 313.27
34	5304504802		Fan Blade, Axial   (Replaces: 5304476059)		Appelez-nous	-
35	5304487223		Shroud, Condenser Fan		Appelez-nous	-
36	5304472208		Window Filler Kit, Slider Panels		Appelez-nous	-
37	5304491953		Hardware, Mounting, Screws/locks				$ 19.52
38	5304472211		Seal Kit, Foam, Sash Filler				$ 36.12
39	5304472191		Screw Kit, Top Rail Mount				$ 16.22
40	5304472210		Rail, Shutter Track, Top		Appelez-nous	-
41	5304476197		Retainer, Shutter, Cabinet Sides				$ 9.87
42	5304476198		Cabinet, Wrapper/sleeve		Appelez-nous	-
43	5304476201		Filter-drier				$ 38.98
